Q4XTBLAF300-Q8, Banner Diffuse Distance Sensor, Barrel Sensor, 25 mm → 300 mm Detection Range, Фотоэлектрический датчик

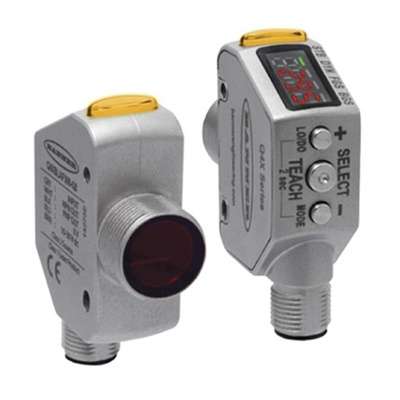

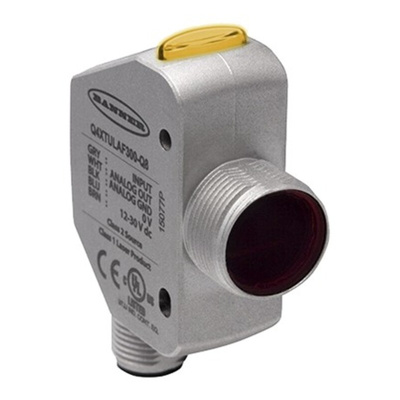

Banner Distance Sensor, M12 Connection, Panel Mounting - Q4X Series - Q4XTBLAF300-Q8

Take the guesswork out of distance measurement with this distance sensor from Banner. Thanks to its wide detection range between 25 and 300mm, it's a far-reaching solution for determining the proximity of physical objects in your work environment. Laser optical technology gives you precise results, so it's suitable for use in quality control applications. The unit's stainless steel housing offers resistance to impact and corrosion, so it's just the thing for use in tough work environments.

• Speedy response time of 50ms for swift object detection
• Wide operating temperature range between -10°C and +50°C to hold its own against harsh conditions

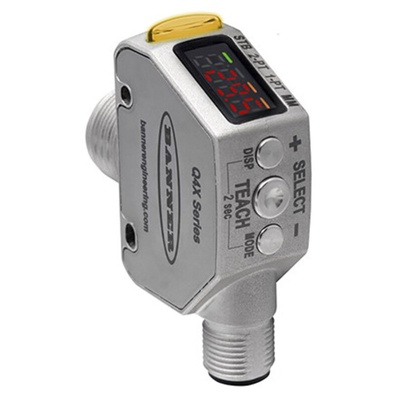

• Four-digit display makes it easy to view results
• IP69K rating indicates it's dust-tight and resistant to high-temperature, high-pressure water jets

Applications

• Pharmaceutical industry
• Packaging plants
• Robotic systems
• Medical facilities

How does a diffuse detection sensor work?

A diffuse detection sensor like this one detects objects without needing a separate receiver or reflector. Instead, it emits a light beam that reflects off the object and returns to the sensor after detecting its presence or absence.
