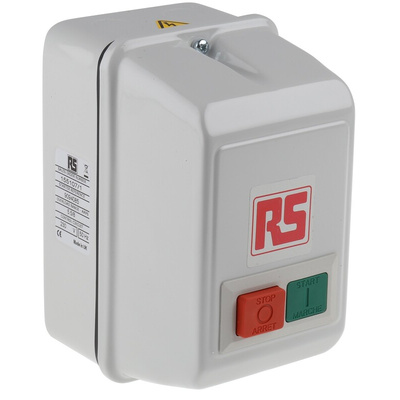

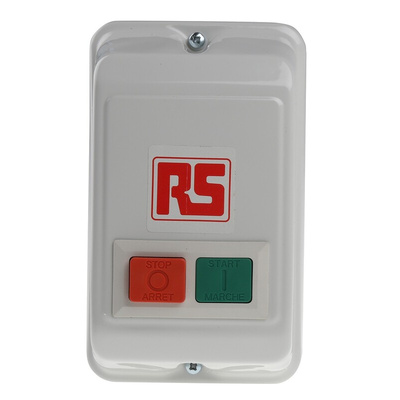

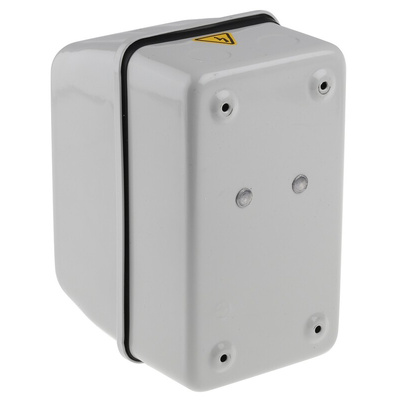

RS PRO Single Phase DOL Starter, 240 V, 0.75 kW, IP55

When you need a reliable way to initialise a motor in your equipment, choose this RS PRO DOL (direct-on-line) starter. Using this starter allows you to connect the motor's coil directly to the power supply, providing 100% of its starting torque immediately.


This starter is fitted with a thermal overload, so there's no risk of it being damaged by overheating after a short circuit. The durable steel enclosure also has an IP55 rating, which means it can withstand low-pressure water jets and is protected against dust. This makes it a good choice for use in harsh environments.


The starter is ideal for smaller motors in fans, conveyor belts and water pumps. As it's manually operated, it's easy to activate your systems when necessary. This part has been stringently tested by engineers for safety and quality.

Features and Benefits

• Current rating of 5.5 A to 8 A


• Enclosure


• IP55 rated


• Manual motor starter functionality


• DOL (direct-on-line) motor starter type


• Surface mounting


• Depth of 134 mm


• Length of 104 mm


• Width of 174 mm


• Single phase


• Three poles


• Power rating of 0.75 kW


• Meets BS EN 60947/60529 and IEC 947 standards


• Voltage rating of 240 V AC


• RAL 7035 light grey colour


• Hand reset thermal overloads


• Provision for remote control
