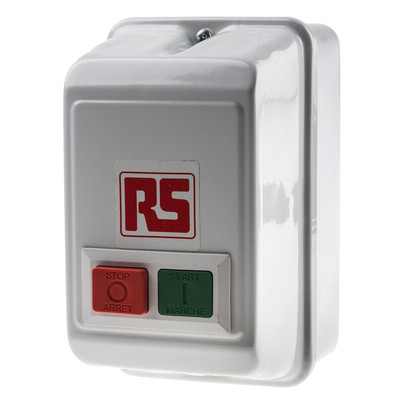

RS PRO DOL Starter, DOL, 1.5 kW, 240 V ac, 1 Phase, IP55, Пускатель

RS PRO Single Phase DOL Starter, 240 V, 1.5 kW, IP55

Use this RS PRO DOL (direct-on-line) starter for a safe way to initialise a motor in your equipment. It provides 100% of its starting torque immediately, as it enables you to connect the motor's coil directly to the power supply. As it's manually operated, it allows you to activate your systems with ease.


The starter has protection against overheating in the event of a current surge after a short circuit, as it's fitted with a thermal overload. You can install the part in a wide range of indoor and outdoor environments thanks to its IP55 rating for protection against dust and low-pressure water spray.


As part of the RS PRO range, this product has been rigorously tested for quality and safety. The starter is ideal for smaller motors in conveyor belts, fans and water pumps.

Features and Benefits

• Current rating of 10 A to 13 A


• Enclosure


• IP55 rated


• Manual motor starter functionality


• DOL (direct-on-line) motor starter type


• Surface mounting


• Depth of 134 mm


• Length of 104 mm


• Width of 174 mm


• Single phase


• Three poles


• Power rating of 1.5 kW


• Meets BS EN 60947/60529 and IEC 947 standards


• Voltage rating of 240 V AC


• RAL 7035 light grey colour


• Hand reset thermal overloads


• Provision for remote control
