Super 88 50mm x 33 m, 3M Scotch Super 88 Black PVC Electrical Insulation Tape, 50mm x 33m, Изоляционная лента

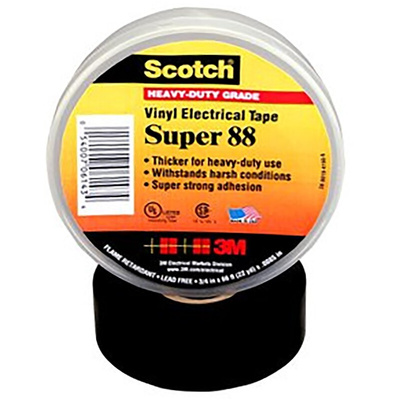

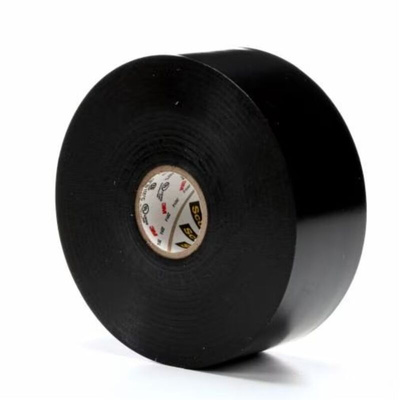

Scotch® Super 88 Vinyl Electrical Tape

From 3M, this Scotch® Super 88 Vinyl Electrical Tape is a premium grade, all-weather PVC insulating tape. This insulating vinyl tape combines elastic backing and an aggressive adhesive to provide moisture-tight electrical and mechanical protection with minimum bulk. It’s designed to perform continuously in ambient temperatures up to 105 °C. The tape is conformable for cold weather applications down to -18 °C.

Vinyl tape has excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions, including UV exposure. It also offers consistent electrical strength even when wet, and inhibits corrosion of electrical conductors. Tough, durable and with proven resistance to corrosion and moisture ingress, Scotch Super 88 is an insulating tape that can stand up to challenging conditions.

Features and Benefits

• All-weather insulating vinyl tape
• Strong adhesive
• Provides moisture-tight protection
• UL, CSA and VDE approved
• The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
• Premium grade, all-weather PVC insulating tape
• Provides moisture-tight electrical and mechanical protection with minimum bulk
• UL, CSA and VDE approved
• Withstands a temperature range of -18 to 105 °C

Application

Super 88 vinyl electrical tape is designed to insulate wires and other material that conduct electricity. It has a pressure-sensitive application and is highly conformable, meaning it can be moulded for a variety of purposes. With dependable adhesive and excellent resistance, this insulating tape is a long-lasting solution to many electrical applications. As it features a great level of adhesion, the vinyl tape can also be used for general-purposes such as packaging and can also provide a quicker and easier solution than paint for lane marking.

Can wires with exposed cables be made safe with this tape?

Electrical tape, also known as insulating tape, is designed with this purpose in mind, however, it is recommended that qualified professionals are consulted when dealing with potentially live electrical wires.

What are electrical tapes?

A range of tapes for electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

3M Electrical Insulation Tape, 0.22mm Thickness, 10,000V Dielectric Breakdown - Scotch Super 88 Series - Super 88 50mm x 33 m

Keep live wires safely under wraps with this electrical insulation tape from 3M. It seals and insulates conductors to safeguard against damage and prevent electric shocks. For versatility, it works on compounds, dielectric insulations and epoxy and polyurethane resins. All-weather binding means it holds up in temperature extremes between -18°C and +105°C, making this a go-to tape for indoor and outdoor installations.

Features & Benefits

• Resists UV, corrosion and chemical damage for durability in tough and contaminated conditions
• High conformability makes it easy to mould around and attach to uneven surfaces

Applications

• Cable splicing
• Lane marking
• Packing
• Protective low-voltage jacketing
• Wire harnessing

Can I use this tape in humid environments?

Yes, it's moisture-resistant so it won't come loose in humid environments, such as industrial kitchens or marine yards.

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

3M Tape Selector

Need advice on choosing the right Tape? Use our Product Selector to help you make the right choice!

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Vinyl Electrical Tape Super 88 - Datasheet

Scotch Super 88 Datasheet

Guide - Super 88 50mm x 33 m
