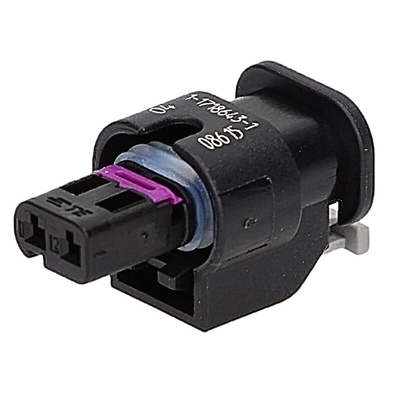

1-1718643-1, TE Connectivity, MCON 1.2 Automotive Connector Socket 2 Way

TE Connectivity MCON 1.2mm Receptacle Housings

TE’s MCON series of connectors and housings are designed specifically for electronic and electrical applications in motor vehicles, where vibrations and mechanical stress, in the long term, can affect the quality of the contact system. MCON 1.2 mm receptacle housings made from PA66-GF35 for use with clean body contacts. These MCON 1.2 mm receptacle housings are sealed, have a standard latch and accept a wire size range of 0.5 to 1.5mm2.

Features and Benefits
• Connector Style: Housing for female terminals,
• Connector System: Wire-to-Board, Wire-to-Device, Wire-to-Wire
• Housing Features: Centerline (Pitch): 4 mm
• Operating Temperature: -40°C to +130°C

TE Connectivity Automotive Connectors

MCON 1.2 Series Sealed Receptacle Housing, 2P
