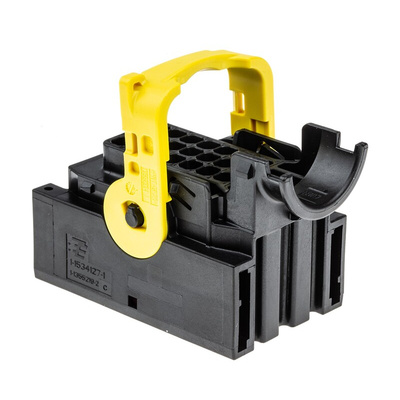

1-1534127-1, TE Connectivity, LEAVYSEAL Automotive Connector Socket 21 Way

TE Connectivity MCP 2.8 Receptacle Housings with Secondary Locking

A range of unsealed MCP 2.8 receptacle housings with secondary locking mechanisms. These MCP 2.8 receptacle housings are made from PA 66 GF13 and accept a wire size range of 2.5mm² FLR max, except for 3 way versions that accept a wire size range of 4mm² FLR max. The various keying options for these MCP 2.8 automotive receptacle housings are shown in the table. For suitable MCP 2.8 tab housings please see stock number 726-9013 typically. Secondary locks are also available, please see stock number 726-9108 typically.

Features and benefits:

•Made from a strong PBT
•Mating tab width – 2.8mm
•Operating temperatures of -40°C to +120°C
•Wire-to-wire connection
•High reliability
•High vibration levels supported
•Protected locking lance

Applications:

•Automotive
•Industrial

TE Connectivity Multiple Contact Point System (MCP)

1-1534127-1 datasheet
