130-1055-ESDN, Weller MG130 Kit 2 Sloped Nozzle, 100 → 240V ac Solder Fume Extractor, Fine Dust Filter F7; HEPA Filter H13 &

Weller MG 130 Fume Extraction Nozzle Kit

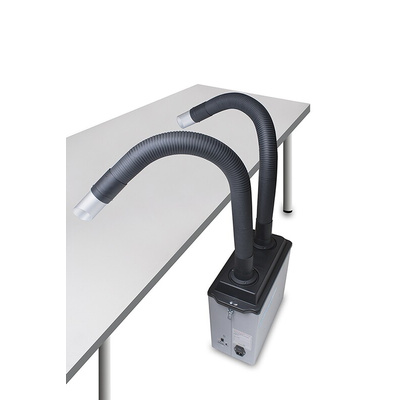

The MG 130 extraction nozzle kit is an easy to install volume fume extraction system for up to two workplaces. The extraction unit is suitable for various applications including hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK and cleanroom. With a compact footprint, filter alarm including 3 step up speed control and a maximum extraction rate of 140m3/h wish is an ideal solution for your working environment. The MG 130 includes a compact filter, a H13 particle filter and a wide band filter which is 50% active carbon and 50% chemisorb. The nozzle kit is supplied in two pieces including one metre flexible extraction arms and metal sloped nozzle of 130mm. The extraction arms are fixed directly onto the extraction unit and placed close to your workbench.

FEATURES and BENEFITS:
Voltage 100 to 240 V 50 to 60 Hz
Heating output 100 W
Capacity 140 m3/h
Sound level 48 db(A)
1 to 2 workstations
Pre-filter 130-2010
Mail filter 130-2000 ESD
Pre-filter mat class F7
Width 460 mm
Depth 210 mm
Height 500 mm
Weight 11 kg

INCLUDED:
MG 130 Fume extraction Unit
Compact filter
H13 particle filter
Wide band filter 50% Carbon, 50%Chemisorb
Pre-filter F7
Two flexible arms
Two ALFA nozzles
