Megger 1006-603 Ohmmeter, Maximum Resistance Measurement 2500 μΩ, Resistance Measurement Resolution 0.1μΩ

9106804
Номер производителя: 1006-603 Производитель: Megger
Цена за шт.
436590.00 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

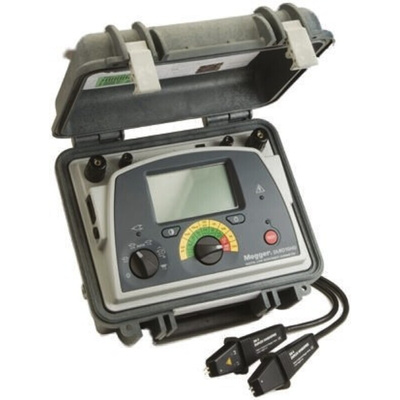

DLR010HD Heavy Duty 10A Low Resistance Ohmmeter

Heavy duty low resistance ohmmeter combining rugged construction with accuracy and ease of use. It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat

2 high power ( up to 25W) ranges ideal for inductive applications, and where heating a potential weakness is desirable
7 low power output ranges limited to 0.25W to avoid heating the test piece and to extend battery life.
Rechargeable battery or line power supply, continuous operation, even with dead battery
10 A for 60 seconds, less time waiting to cool, great for charging inductance
High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse

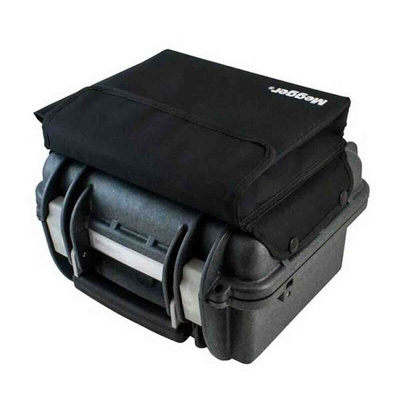

Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)

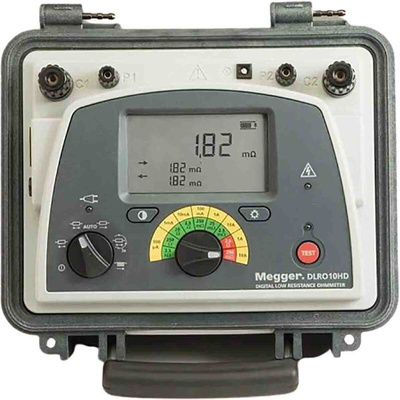

Large backlit LCD is clear and easy to read in all lighting conditions.
Rotary switch selects one of five test modes, including auto start on connection, giving ease of use
Support accessories:
Dstrong straight duplex handspike set with 2.5m long leads. See stock no. 666-7371

Test Current Resistance Range Resolution Accuracy * Full scale voltage Max. power output
0.1 mA 0 → 2500.0 Ω 100 mΩ ±0.2% ±200 mΩ 25 mV 2.5 μW
0.1 mA 0 → 250.00 Ω 10 mΩ ±0.2% ±20 mΩ 25 mV 2.5 μW
1 mA 0 → 25.000 Ω 1 mΩ ±0.2% ±2 mΩ 25 mV 25 μW
10 mA 0 → 2500.0 mΩ 100 μΩ ±0.2% ±200 μΩ 25mV 250 μW
100 mA 0 → 250.00 mΩ 10 μΩ ±0.2% ±20 μΩ 25 mV 2.5 mW
1 A 0 → 25.000 mΩ 1 μΩ ±0.2% ±2 μΩ 25 mV 25 mW
10 A 0 → 2500.0 μΩ 0.1 μΩ ±0.2% ±0.2 μΩ 25 mV 0.25 W
1 A 0 → 2500.0 mΩ 100 μΩ ±0.2% ±200 μΩ 2.5 V 2.5 W
10 A 0 → 250.00 mΩ 10 μΩ ±0.2% ±20 μΩ 2.5 V 25 W
* The accuracy stated assumes forward and reverse measurements.
Inductive mode or unidirectional mode will introduce an undefined error if an external EMF is present
Measurement modes Normal, Automatic, Continuous, Inductive, Unidirectional
Temperature Coefficient < 0.001% per °C, from 5 °C → 40 °C
Test current Accuracy ±10%
Voltmeter input impedance >200 kΩ
Noise rejection: <1% ±20 digits additional error with 100 mV peak 50//60 Hz. on the potential leads. Warning will show if hum or noiseexceeds this level.
Battery capacity 6V 7AH sealed lead acid
Battery Life 1000 Auto (3 sec) tests
Charging time 8 hours
Operating Temperature +5 °C → +45 °C full specification, -10 °C → +50 °C reduced accuracy
Line voltage input range 90 → 264 V rms, 9 → 17 VA, 50//60 Hz
Dimensions & Weight: 315 x 285 x 181mm : 6.7kg
Supplied with

Dstrong duplex handspikes with 1.2m lead length, test lead pouch (lid mounted) user guide on CD ,6V 7Ah sealed lead acid battery (fitted)

Earth Testing

Техническая спецификация

Вес:
6.7кг
Измерение максимального сопротивления:
2500 мкОм
Источник питания:
Батарея, Сетевой
Максимальная точность:
+0.2 %
Минимальная точность:
-0.2 %
Модель р:
DLR010HD
Портативный:
Да
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Разрешение измеряемого сопротивления:
0.1мкОм
Срок службы батареи:
1000 Tests
Тип батареи:
6В Sealed Lead-Acid
Тип измерения:
Low Resistance
