560085-0101, Molex DuraClik Series Female Crimp Terminal, Crimp or Compression Termination, 26AWG Min, 22AWG Max, Контакты

Molex 2.0mm DuraClik Standard Crimp Terminals - 560085 and 56161 Series

560085 and 56161 series DuraClik crimp receptacle terminals for use in 2.0mm DuraClik Standard receptacle housings. These DuraClik crimp receptacles have a wire size range of AWG 22-26 and are available with tin or gold plating.

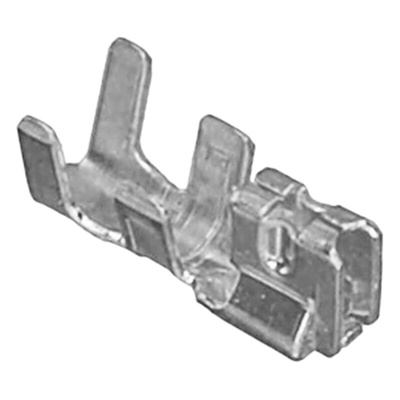

Molex DuraClik Female Crimp Terminal, 0.1 to 0.3mm² Wire Size - 560085 Series - 560085-0101

This female crimp terminal from Molex provides superior electrical contact reliability in high-vibration and high-temperature applications. Its substantial retention force makes it robust enough for rugged environments where rough handling could otherwise dislodge terminals or cause signal interference. Wide solder tabs provide a larger surface area for connection with a PCB (printed circuit board), making the unit able to withstand pull forces of up to 100 Newtons. The special anti-wire-tangling design of the terminal top helps prevent conductors from knotting during shipping or handling to prevent accidental damage to your wiring.

• Audible click confirms correct mating with the housing, minimising error
• Closed terminal design protects the contact from debris for enhanced reliability
• Two points of contact to ensure a tough and durable electrical connection
• Tin-plated contacts for optimal electrical current conduction

Applications

• Automotive industry
• Factory automation equipment
• Air conditioning systems
• Electric bikes

What are this crimp terminal's contacts made from?

The contacts of this crimp terminal are made from phosphor bronze, which has enhanced resistance to corrosion. This means the terminal can withstand humid operating conditions. The material is also strong for increased longevity and is unlikely to break, even when put under above-average force.

2.0mm Wire to Board - Molex DuraClik™ Series

DuraClik 2.0mm Wire-to-Board Connectors, Single Row, Positive Lock

DuraClik Standard Crimp Receptacle, 22-26 AWG

Application Sheet - 560085-0101

Product Specification Sheet - 2.0mm Pitch Wire to Board SMT Connector
