Lascar EL-BT-2 Data Logger for Humidity, Temperature Measurement, Логгер

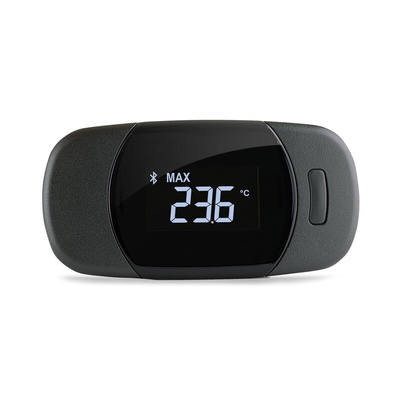

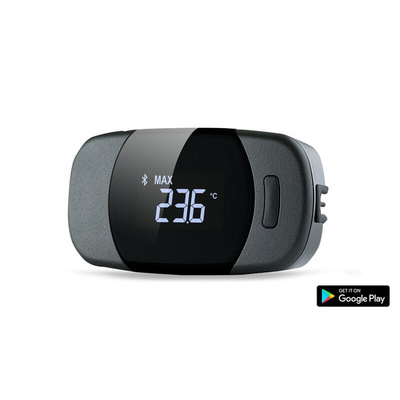

Lascar EL-BT-2 Bluetooth Wireless Temperature and Humidity Data Logger

Lascar EL-BT-2 data logger measures and stores up to 500,000 temperature and humidity readings. Its LCD screen indicates Bluetooth connection status as well as logger operation. The push button allows cycling of current, minimum and maximum recorded values. Users can view logged temperature, humidity readings and calculated dew point, the minimum and maximum values and alarm breaches. They can use zooming and panning features to view critical data easily. The EL-BT-2 comes with a rechargeable battery and can be used with a USB wall charger. The equipment complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. EL-BT-2 is suitable for a wide variety of applications including: pharmaceutical fridge monitoring; environmental and weather monitoring; agricultural and livestock; food & drink; building & site monitoring; HVAC.

Measurement range: -20 to +60 °C (-4 to +140 °F) temperature; 0 to 100% RH humidity
Resolution: 0.1 °C (0.1 °F) temperature; 0.1% humidity
Accuracy (overall error): ±0.4 °C (±0.7 °F) typical, temperature; ±2%RH typical, humidity
Dimensions 102 x 51 x 20 mm (4.01 x 2 x 0.78 in)
Environmental protection IP55
Connection distance: Class 2 Radio 10m (30ft)
Setup and download using the free EasyLog BT app for Android™
View data on your Android™ device or export to EasyLog Graph for Windows
Store up to 500,000 temperature and humidity readings
LCD screen shows the current, minimum and maximum readings and status indication

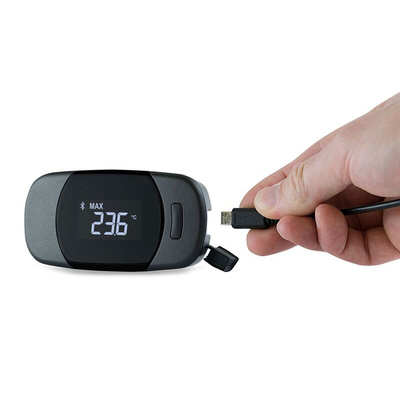

Rechargeable lithium ion battery

Note

The EasyLog BT app for Android™ (Version 4.0 Ice Cream Sandwich and later) is available on Google Play™ and allows users to manage the EL-BT-2 logger with ease: easily configure EL-BT-2; download recorded data for viewing; animated walkthrough of setup process; export logger data via email or other cloud services. Within the app users can set sample rate, temperature scale, temperature and humidity alarms, Bluetooth power-save settings, LCD settings and variable start times. Downloaded data is saved to user's phone memory card and can be viewed anytime. Users can transmit data via email or preferred cloud service to another device or Windows PC for further analysis.

Supplied with

Rechargeable battery, Quickstart Guide (downloadable)

Temperature and Humidity BT Data Logger Data Sheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
