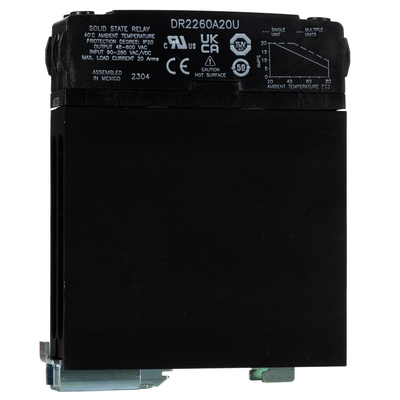

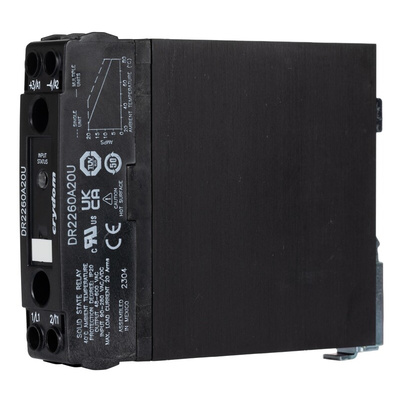

DR2260A20U, Sensata / Crydom DR22 Series Solid State Relay, 20 A Load, DIN Rail Mount, 600 V rms Load, 280V ac/dc Control, Реле

Sensata | Crydom Solid-State Relay, 4kVrms Dielectric Strength, 8pF I/O Capacitance - DR22 Series - DR2260A20U

Take charge of your industrial loads with this solid-state relay from Sensata | Crydom. It automatically opens and closes your electrical circuit when the sensor receives a control signal. As it uses semiconductors instead of moving parts, it's a wear-resistant, long-lasting component that's virtually maintenance-free. The unit's thermoplastic housing stands up to impact and wear. As it mounts to a DIN rail, you'll have it installed in no time. You can use this relay in your motor control and lighting applications.

Features & Benefits

• Dielectric strength of 4kVrms ensures reliable insulation for improved safety
• Low I/O capacitance of 8pF for high-integrity signal transmission
• Green LED status indicator for easy monitoring and diagnosis
• Safe to use in challenging conditions, thanks to a broad operating temperature range between -40°C and +80°C
• Compact dimensions of 93.2 (H) x 22.5 (W) x 116.5mm (D) to maximise packing space on your rail

Is this relay safe to handle?

Yes, this unit's IP20 rating means it's finger-safe and protected against objects larger than 12mm in size for shock-free handling.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DR2260A20U
