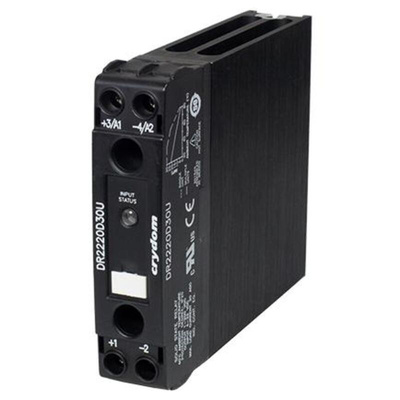

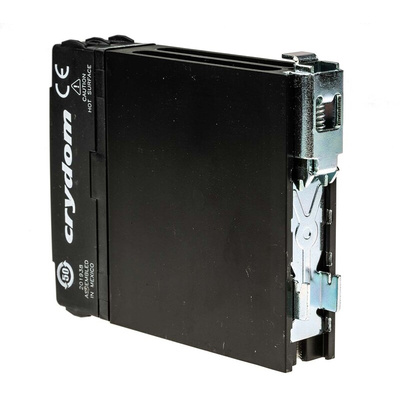

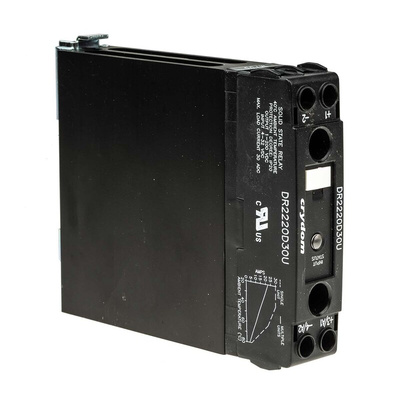

DR2220D30U, Sensata / Crydom DR22 Series Solid State Relay, 30 A Load, DIN Rail Mount, 200 V dc Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 30A Rated Load Current, 1 to 200V DC Operating Voltage Range - DR22 Series - DR2220D30U

Make or break the circuits in your devices using this solid-state relay from Sensata | Crydom. It converts electrical signals to optical ones, causing the contacts to open or close in the blink of an eye. Thanks to its built-in overvoltage protection, it can take the heat in the event of a current surge, helping to protect your system against hazards. An integrated heatsink is also on hand to help the relay keep its cool in demanding operations. Use this relay to switch your robotics and medical equipment on and off.

Features & Benefits

• Housing is self-extinguishing for safety in the event of a fire
• Broad operating temperature range between -40ºC and +80ºC for safe use in challenging environments
• LED indicator enables easy status monitoring
• Lack of moving parts reduces the risk of mechanical wear for a long service life

What's the switching time of this relay?

This SSR has a maximum turn-on time of 75μsec and a maximum turn-off time of 100μsec, so it'll give you rapid-fire switching.

How do I mount this relay?

You can mount this SSR in a jiffy by simply clipping it to a DIN rail.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU
