911469, Solartron Metrology Signal Conditioner, Voltage Input

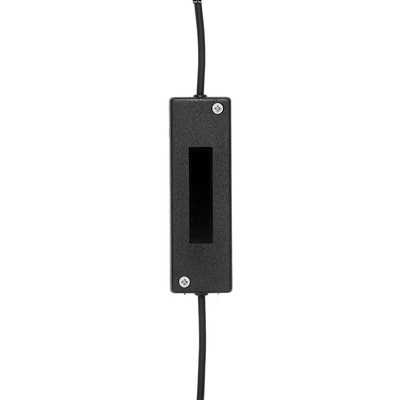

OD Series BICM In Line Signal Conditioning Unit

The OD series of conditioning units are used to interface with Solartron’s sensors to provide different functionality suiting different applications. The BICM in line conditioning unit is recommended for use in harsh environments plus DC operation is achievable by using the BICM in line conditioning unit. The BICM is a simple low cost unit and can be connected up to 10 metres from the sensor and is perfect when the transducer is set up as it is unlikely to need any adjustment. An IP67 variant of the BICM is also available.

Power Requirement
Input Voltage: ±15 VDC
Input Current: ±12 mA

Sensor Excitation
Primary voltage 1.2 – 21 Vms
Primary frequency 5 kHz

Signal Input
Input Range Up to 3.5
Input Load 100 kΩ

Storage Temperature - -20 to +80
Operating Temperature - 0 to +60
Mounting In Line

Sensor Connections - Solder tag or factory fit for IP67
Material - Plastic or Stainless Steel IP67

IP rating IP40/67 IP40

BICM - Boxed In Line Module

Approvals

IP rating IP40/67 IP40

911469 - BICM Datasheet
