Fluke I310S Current Clamp, 450A DC Max, AC/DC Adapter, 300A ac AC Max - UKAS Calibrated

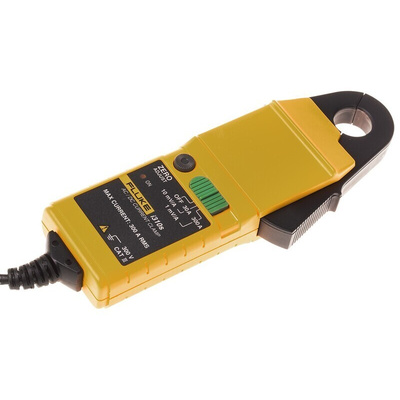

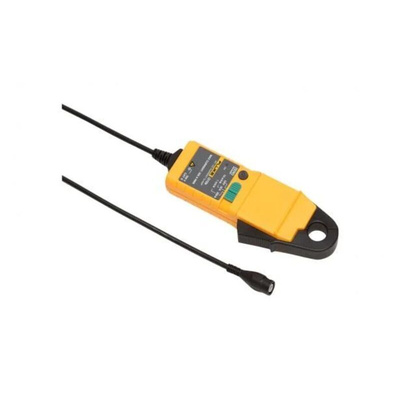

Fluke i310s AC/DC Current Clamp

The i310s Current Clamp has been designed for use with oscilloscopes and digital multimeters for accurate nonintrusive measurement of AC, DC and complex waveform currents.

Using Hall Effect technology, the clamp can accurately measure currents up to 450 A peak over the frequency range of dc to 20 kHz
These features make it a powerful tool for use in inverters, switch mode power supplies, industrial controllers, automotive diagnostics, and other applications requiring current measurements and/or waveform analysis
Output cable and connections: Safety BNC connector supplied with safety 4 mm adapter
Power Supply: 9 V Alkaline, NEDA 1604/PP3 IEC 6LR61
Safety Standards: EN 61010-1: 2001, EN 61010-2-032: 2002, EN 61010-031: 2002
300 V rms Category III, Pollution Degree 2

FLUKE Current Clamp, Handheld, 19mm Maximum Conductor Size - FLUKE I310S

Lock in on the level of current flowing through your circuits using this current clamp from FLUKE. Taking readings is easy as you just gently bite down on your conductors with its jaws. The device senses AC and DC current without breaking the circuit, keeping you safe from shocks or sparks. Thanks to a broad measuring range of 30 to 300A AC and 45 to 450A DC, you can trust this unit to keep up with your low-current and high-current devices.

Features & Benefits

• Integrated thumbwheel lets you manually adjust output to zero
• Strain relief helps prevent cable damage from bending
• LED for convenient status monitoring
• Wide operating temperature range of -10°C to +50°C for safe use in challenging settings

Applications

• Junction boxes
• HVAC systems
• Security devices
• Consumer electronics

Can I connect this clamp to external devices?

Yes, you can connect this clamp to external measuring devices like your oscilloscope or DMM. It comes with a 2m-long cable so you can easily reach your appliances from a distance.

How accurate is this current clamp?

It has an accuracy rating of ±1% and +300mA, so you can trust this clamp to produce reliable results.
