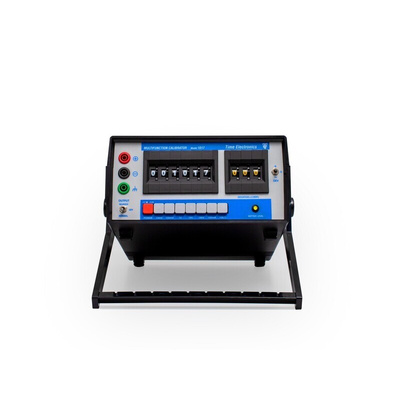

Time Electronics Model 1017 DC Multifunction Voltage/Current/Resistance Calibrator

Time Electronics 1017 is a high performance portable multifunction calibrator with voltage, current and resistance ranges. Its combination of precision and simple operation gives it versatility for workshop and field operations. The batteries are automatically recharged when the mains supply is connected. The compact, durable plastic case, with tilt stand/carry handle, takes up minimal bench space and makes the 1017 readily transportable. The instrument's outstanding stability v temperature and time performance is because of the use of special computer-selected reference diodes and resistor technology. The low-thermal emf terminals reduce errors when working with microvolt signals. Digital deviation control allows the output to be increased and decreased in % terms from 0 to ±0.999%. This provides a direct readout of error and simplifies the recording results for calibration certificates. It enables the user to see immediately whether the unit under test is within specification. The 1017 is suitable for calibrating and simulating a wide range of instruments including thermocouples, transducers, 4 - 20 mA and 0 - 10 V transmitters and platinum resistance thermometers.

DC voltage 10nV to 100V
DC current 100nA to 100mA
Resistance 10MΩ to 10kΩ
Accuracy 0.0005% (50 ppm)
1 ppm setting resolution
Noise <2 ppm (0.1 to 1Hz)
Stability <5 ppm/day, <25 ppm/year
Deviation control - voltage and current
Battery or mains operation
Dimensions 290 x 250 x 110 mm
Weight 2.4kg

Supplied with

internal rechargeable Ni-Cad battery pack

Time Electronic Multi Function Calibrator

The Time Electronic multifunction calibrator with UKAS certification is a high-performance portable multifunction device. This calibrator offers calibration of voltage, current and resistance ranges. It combines precision with simple operation, making it suitable for use in a workshop or field. It is constructed in a compact and durable plastic case with a tilt stand/carry handle and takes up minimal bench space and is easily transportable. This product is suitable for calibrating and simulating a wide range of instruments including thermocouples, transducers, 4 to 20mA and 0 to 10V transmitters and platinum resistance thermometers.

Features and Benefits

DC voltage ranges between 10nV and 100V
DC current ranges between 100nA and 100mA
Resistance ranges between 10mohms and 10kohms
Accuracy is 0.005% (50ppm)
1ppm setting resolution
Noise is less that 2ppm (0.1Hz to 1Hz)
Deviation control for voltage and current
Battery or mains operation

Applications

Process control automation
Manufacturing
Instrumentation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
