HMIZKITRA1, Schneider Electric Accessory Kit For Use With HMI HMIZRA1

Illuminated USB Switch for Magelis HMI

The illuminated USB switch is uniquely designed for easy visualization and quick acknowledgement of alarm (wide view angle and brightness).
This switch with click sensation is also used as a function key in HMI applications where the touch panel involves repetitive and reliable operations in dirty environments. This keeps the touch panel clean and protected by avoiding continuous finger contact.
The illuminated USB switch can be easily wired, powered by the USB cable and integrated with the Magelis HMI. This range is ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper.

Five illuminated function keys
Alarm display and acknowledgement via 5 multi-colour LEDs
Configuration with Vijeo Designer Software
Connection by USB cable
Mounting in a standard 22 mm diameter hole
IP65 protection

Following parts are available:

Illuminated USB Switch - stock no. 912-0314

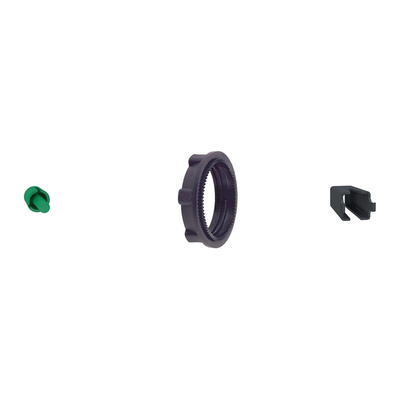

Accessories Kit - stock no. 912-0308

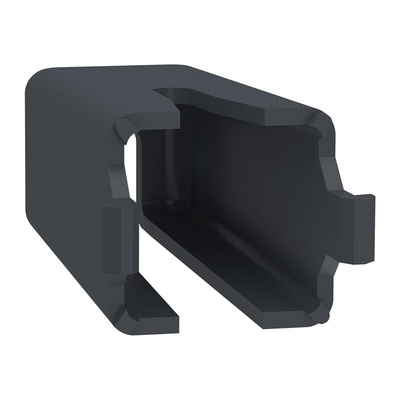

- Includes 5 installation nuts, 5 antirotation tees and 5 USB clamps type B

Insert Label Sheets - stock no. 912-0311
- 3 sheets with customisable labels per sheet)

Gaskets - stock no. 912-0318
- 5 gaskets in the package
