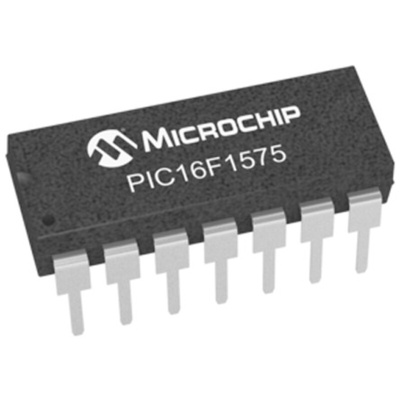

Microchip PIC16F1575-I/P, 8bit PIC Microcontroller, PIC16, 32MHz, 14 kB Flash, 14-Pin PDIP, Микроконтроллер

PIC16F1574/1575/1578/1579 8-Bit Flash Microcontrollers

The Microchip PIC16F1574/1575/1578/1579 family are 8-bit Microcontrollers that feature Four 16-bit PWMs with independent timers among the suite of on-board core independent peripherals. This makes these devices ideal for applications where high PWM resolution is needed, such as LED lighting, stepper motor and power supply designs.

Microcontroller Features

C Compiler Optimised RISC Architecture
Only 49 Instructions
CPU Speed: up to 8 MIPS
125 ns Minimum Instruction Cycle
Interrupt Capability
16-Level Deep Hardware Stack
Power-on Reset (POR)
Power-up Timer (PWRT)
Low-Power Brown-Out Reset (LPBOR)
Programmable Watchdog Timer (WDT)
Programmable Code Protection
Precision Internal Oscillator: Selectable clock speeds from 31 kHz to 32 MHz
External Oscillator Block
Peripheral Pin Select (PPS)
In-Circuit Serial Programming™ (ICSP™) via Two Pins

Peripheral Features

Four 16-bit PWMs with Independent Timers
10-Bit Analogue-to-Digital Converter (ADC) – 8 or 12 Channels depending on model
5-Bit Digital-to-Analogue Converter (DAC)
Two 8-Bit Timers
One 16-Bit Timer
Four extra 16-Bit Timers available using the 16-Bit PWMs
Two Comparators
Voltage Reference
Complementary Waveform Generator (CWG)
Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART)
