24020160010, Harting Unmanaged Ethernet Switch, 16 RJ45 port, 24/48V dc, 10/100Mbit/s Transmission Speed, DIN Rail Mount, 16 Port, Коммутатор

9125331
Номер производителя: 24020160010Производитель: HARTING
Цена за шт.
113277.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

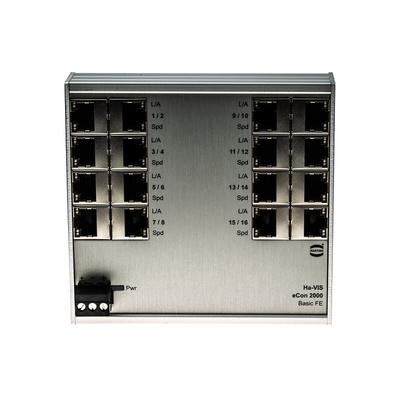

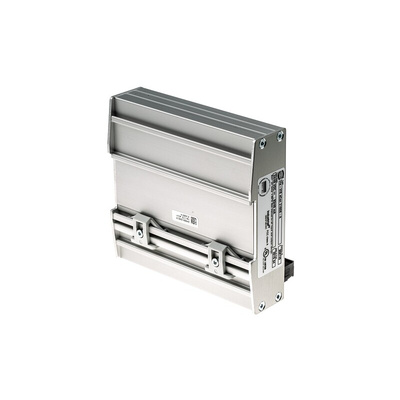

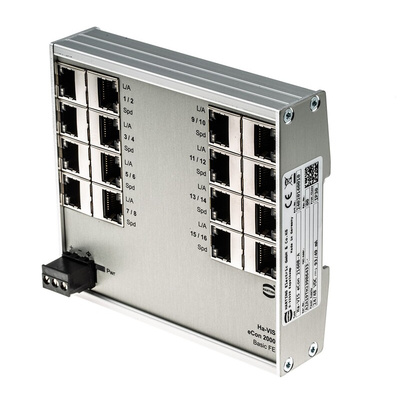

HARTING Unmanaged Ethernet Switch

The HARTING unmanaged Ethernet switch has 16, RJ45 ports and DIN rail mounting. It has a supply voltage rating between 24VDC to 48VDC. The Ha-VIS eCon 2000 series unmanaged Ethernet switch offers a plug and play solution. The switches have a flat construction and frontal port mounting for installation into space-restricted or hard-to-reach applications. The PoE and fibre-optic ports are also available.

Features and Benefits

1.75 MTBF (in million hours)

Non-blocking fast Ethernet switching architecture
Auto-negotiation
Auto-polarity and auto-MDI(X) provide the user with a plug and play solution
Reverse polarity and surge protection
Transfer length of 100m via twisted pair Cat. 5 with a 10/100MB/second transfer rate
Reduced energy consumption thanks to energy-efficient Ethernet
Anodised aluminium housing
Operating temperature ranges between 0°C and 55°C

Applications

Industrial network infrastructure
Machinery and robotics
Automation
Transportation
Wind and solar energy
Shipbuilding

Certifications

CE certified
FCC CFR 47 part 15
DNV
GL
ABS
cUL US 508 listed
NK
ABB IIT
IEC 60068-2-6 vibration
IEC 60068-2-6 resonance search
IEC 60068-2-27 shock test
IEEE 802.3
IP30 rated

Техническая спецификация
pdfHa-VIS eCon 2000 Ethernet Switches - Data Sheet
Вес:
386гр
Высота:
113.5мм
Глубина:
27.3мм
Дальность передачи:
100м
Для использования с:
Control Cabinets
Количество портов:
16
Максимальное напряжение питания:
60В пост. тока
Минимальное напряжение питания:
9В пост. тока
Монтаж:
DIN Rail
Номинальное напряжение питания:
24/48В пост. тока
Порты RJ45:
16
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
0°C
Размеры:
120 x 27.3 x 113.5мм
Скорость передачи:
10/100Мбит/с
Специальные функции:
Fast Ethernet Non-Blocking Switch Architecture in Accordance with IEEE 802.3, Minimum Energy Consumption Due to Energy-Efficient Ethernet, Reverse Polarity Protection, Surge Protection
Тип переключателя:
Unmanaged
Тип протокола:
Ethernet 10/100 Мбит/с
Ширина:
120мм
