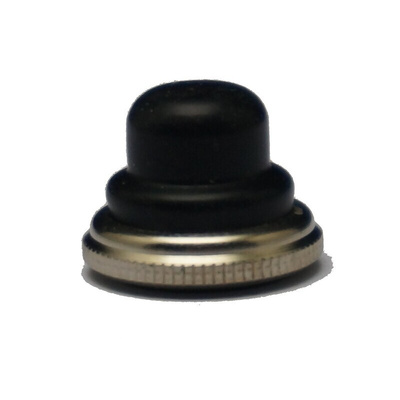

20.17292.21, EOZ Black Push Button Cap, for use with 10 mm Push Button, Protective Cap, Крышка

9131689
Номер производителя: 20.17292.21Производитель: EOZ
Цена за шт.
2166.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DJET Series Pushbutton switches, Front Panel Sealed

The DJET series push button switches and be used in outdoor applications as they are IP67 front panel sealed for the 10mm version. The 6.35 mm version can be fitted with a silicone cap giving IP5 protection. They are available in single or double pole versions and in two sizes, either 6.35 mm or 10 mm diameters. They have a positive snap-action switching system with an electrical life of 100 000 operations.

For mounting, these units are pushed through the panel cut out and then fastened with a fixing nut from the back. Do not tighten by the means of top not.

Potential Applications

These units can be used in many possible applications and are extremely versatile. Some examples would include military and avionics equipment, telecommunications, medical equipment and power supplies.

Техническая спецификация
pdfDJET Toggle Switches
Для использования с:
10 mm Push Button
Размеры:
18 (диаметр) x 13.7мм
Тип аксессуара:
Protective Cap
Цвет крышки:
Черный
