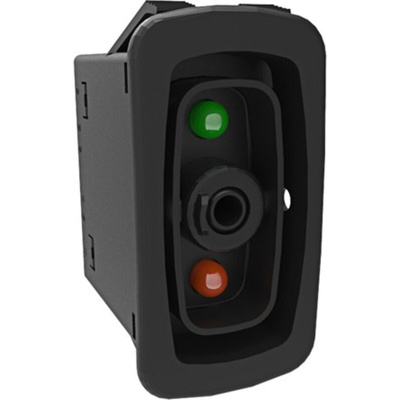

L14B1CXX1-00000-000-XWL1, Carling Technologies Illuminated SPST, On-(On) Rocker Switch Panel Mount, Клавишный переключатель

L Series Rocker Switches

Switches and Series Overview

The L Series rocker switches from Carling Technologies are an innovative product offering total design flexibility, at the same time offering the highest standards for performance and reliability. The versatile design features include a neatly proportioned size that fits into an industry standard mounting hole, unique choices for ratings, circuits, colours, illuminations and laser etched legends. The single or double pole switches also feature a broad choice of actuator styles, colours, and lenses with up to twelve terminals offering an extensive range of switch and lamp circuit options, including LED or incandescent illumination.

Actuators

Actuators are available in various colours and with a wide selection of etched texts or symbols. You can also select options with a plain lens for illuminated switched or plain for non- illuminated switches. All etched actuators light up when used with an illuminated switch. typical RS stock no.s

Accessories

A selection of mounting panels allows you to design your perfect panel. They give you a choice of how many switches can be mounted next to each other. There is also an option for a hole plug so you can plan ahead for any future upgrades. A connector housing can be pre-wired and installed in place behind the panel. That way when the switch is ready to be mounted the connector can be plugged into the back of the switch. It also means that any changes to the panel are simple and do not require any rewiring.

Typical Applications

Construction machinery
Agricultural equipment
On-highway transportation equipment

Features & benefits

IP67 certified sealed front panel components
Withstands temperatures from -40°C to +85°C
Vibration, shock, thermoshock, moisture and salt spray resistant

Note

For, examples of Rocker switch lenses and mounting panels see stock numbers 913-2033 & 913-2099

Carling Technologies® Rocker Switches

L-Series Datasheet
