1200878350, Brad from Molex Straight Female 4 way M8 to Straight Male 4 way M8 Sensor Actuator Cable, 2m, Кабельная сборка

Jumper Assembly

Assembled jumper cables allowing connections of sensors and splitter boxes
4 Ways

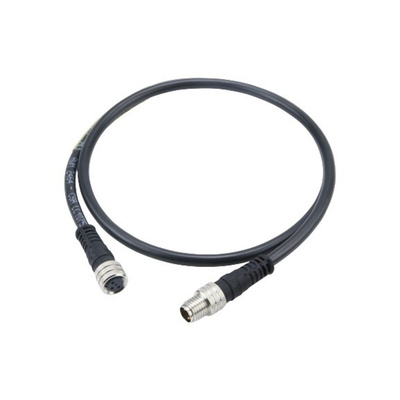

Brad from Molex Straight Female M8 to Straight Male M8 Sensor Actuator Cable, 2m Length - 120087 Series - 1200878350

Securely connect your detectors and transducers to control units on your industrial equipment with this Brad from Molex cable. It has a male and female M8 connector on either end of its 2-metre length. This span provides an ample supply to connect two devices set apart from each other. Thanks to a slim diameter of 4.57mm, this cable is flexible enough to fit into complex setups or those with limited space. You'll find it used in factory automation applications.

• Wide operating temperature range of -25°C to +80°C for reliable performance under industrial conditions
• Polyvinylchloride (PVC) cable jacket for impact and abrasion resistance
• Polyurethane (PUR) connector housing for insulation from electric shock
• Current rating of 3A for energy efficiency and minimal heat dissipation

Applications

• Process and packaging machinery
• Material handing equipment
• Industrial conveyors

What's the function of the coupling nuts on this cable's connector?

The nickel-plated brass coupling nuts on this cable's two connectors are used to establish a firm hold on the port or splitter box it's connected to. This is especially useful in setups prone to vibration.

Brad Harrison - M8

The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.

Datasheet - 120087-8350

Line Drawing - 1200878350
