1200060572, Brad from Molex Male 4 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

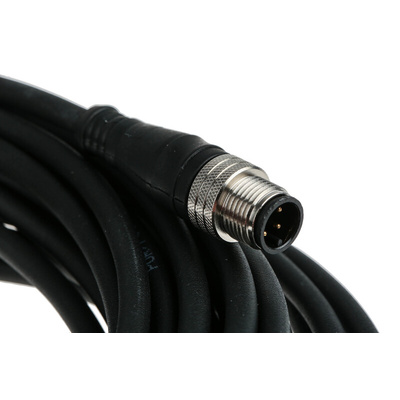

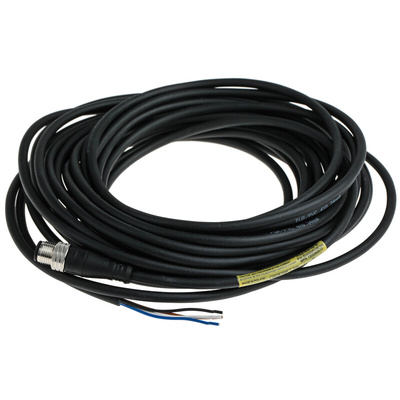

Brad from Molex Male M12 to Free End Sensor Actuator Cable, 10m Length - 120006 Series - 1200060572

For quick data transmission, connect sensors and actuators to your industrial equipment with this Brad from Molex weatherproof cable. It's made from a tough polyurethane (PUR) housing material, making it resistant to the impact and abrasion you'd expect in demanding settings. There's an M12 connector on one end and the other end is unterminated, so you can add the right adapter for your system. With a length of 10 metres, this cable gives you an ample supply you can either cut at its free end or use to connect distant components.

• A-coding feature to prevent mismating for accurate connection
• Nickel-plated brass threaded coupling nut for a firm, tamper-proof and vibration-resistant connection
• IP67 (ingress protection) rating means it can withstand dust and immersion in up to 1m of water
• Polyurethane (PUR) connector shield for insulation from electric shock
• Light weight of 420.5g for easy handling

Applications

• Escalators and elevators
• Food and beverage manufacturing plants
• Marine industries

How do I maintain this cable?

You can maintain this cable by regular inspection for cuts and burns. A burn through the jacket may result from a current overload so you should check your power source if you notice this.

BRAD - M12

Datasheet - 120006-0572

Line Drawing - Male Plug M12 Straight
