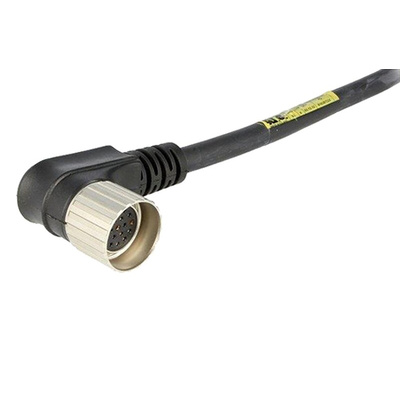

1200945031, Brad from Molex Right Angle Female 19 way M23 to Unterminated Sensor Actuator Cable, 15m, Кабельная сборка

Brad® M23 Signal Single-Ended Moulded Female Cordsets

Brad® M23 signal single-ended moulded female cordsets with black PUR jacketed cables. These Brad® M23 signal cordsets have an M23 connector at one end and a pigtail cable at the other and are available in straight (K02100, K03000) or right angle (K02101, K03001) configurations. The connector bodies of these Brad® M23 cordsets are made from TPU with a nickel plated brass coupling nut and gold plated copper contacts. These moulded cordsets are IP67, NEMA 6 rated.

Note

K0x30xxxxxxxx are for 4 port Distribution Boxes
K0x00xxxxxxxx are for 8 port Distribution Boxes
K0xx00xxxxxxx have straight M23 connectors
K0xx01xxxxxxx have 90° M23 connectors

Brad from Molex Female M23 to Free End Sensor Actuator Cable, 15m Length, 22 to 18 AWG - 120094 Series - 1200945031

This Brad from Molex sensor actuator cable transfers data safely and effectively between electrical devices. It has one female connector that makes it quick to install, while 19 socket contacts ensure fast transmission. The cable's conductors are made from copper alloy, which has excellent electrical conductivity and makes data delivery rapid and reliable. This wire is resistant to chemical exposure and flames thanks to its durable PUR (polyurethane) outer sheath. Its right-angle connector orientation makes it easy to plug in when space is restricted.

• Wide operating temperature range of -25°C to +90°C for use in harsh environments
• Voltage rating of 63V AC/DC (alternating current or direct current) for high-energy systems
• IP67 (ingress protection) rating means it's protected against water and dust particles

Applications

• Proximity sensors
• Industrial motor control
• High-energy transducers

How does an actuator cable work?

An actuator is a motor that uses energy to move or control a system. Sensor actuator cables are used to connect these motors to your system, providing fast and reliable data transfer. When the motor is in use, the cable works with it to transfer motion into energy.
