1200895003, Brad from Molex 4 Pole M8 Plug to 4 Pole M8 Socket Adapter

Jumper Assembly

A range of Micro-Change jumper leads to allow quick and simple interconnection of sensors to splitter boxes and systems.

Brad from Molex 4 Pole M8 Plug to 4 Pole M8 Socket Adapter, 60V AC, 75V DC - 1200895003

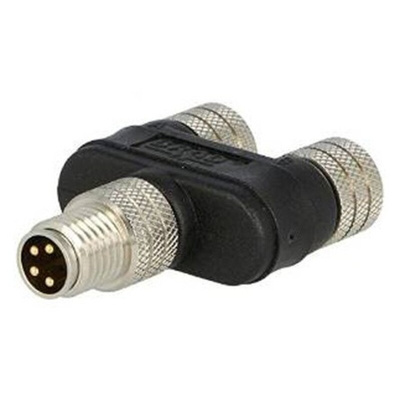

Use this Brad from Molex socket adapter to connect sensors to splitters and control systems. The unit has a male M8 connector at one end and two female M8 sockets on the other end. This allows you to connect two sensors to the same port. Highly conductive copper alloy contacts guarantee a reliable connection. For improved security, the female ends have coupling nuts to ensure they don't accidentally disconnect due to shock or vibration.

• Operating temperature range of -20°C to +90°C for use in demanding environments
• Low weight of 1g makes it easy to handle and minimises strain on cables
• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water

Applications

• Material handling equipment
• Process and packaging machinery

How do I install this connector?

This connector is easy to install. Simply plug in the connectors and secure them to the adapter using the coupling nuts.

What's the maximum voltage this adapter can handle?

This adapter is rated for a maximum voltage of 60V AC and 75V DC.
