MTX203-Z, Metrix MTX203 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max, Мультиметр

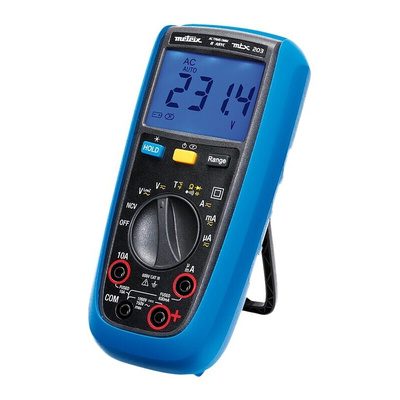

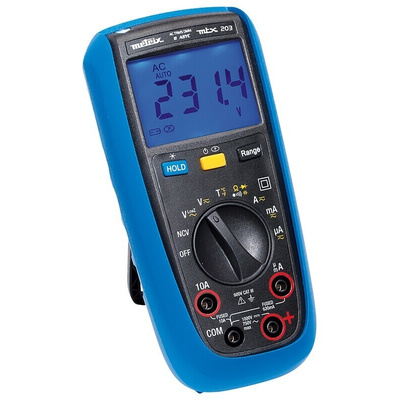

Metrix MTX203 True RMS Digital Multimeter, 6000 Counts

The Metrix MTX203 multimeter offers high performance combined with simplicity in use. Its compact, ergonomic casing is designed for one-hand use and easy stowing for applications in the field. The magnetised sheath enables hands-free use, even in electrical cabinets. The two-position stand ensures easy reading, however the multimeter is positioned. Clarity of readings is enhanced by the blue backlighting of the display. A built-in torch means the multimeter can be used in the dark. The rotary switch offers one function per position. On the front panel, three keys are all that are needed to access the various functions. The 600 V CAT III, IP54 double-well input terminals are easily accessible. Electrical maintenance operations are optimised by the VLowZ low-impedance voltage measurement function. In addition to traditional measurements, the MTX203 can measure temperature via a K thermocouple contact sensor delivered as standard. MTX203 applications range from electrical maintenance to initial troubleshooting on PCBs (measuring resistance, capacitance, diode) and verification of radiator control.

Features and Benefits:

True RMS AC current and voltage measurements
Display 6000 counts
AC/DC voltage 0.6 V to 750 V
AC/DC current 0.6 A to 1000 A
Resistance 1 Ω to 60 MΩ
Capacitance 1 nF to 100 mF
Temperature with K thermocouple (°C / °F) from -55 °C to +1 200 °C
All ranges programmed automatically for simpler use
NCV (no-contact voltage) detection for safe working

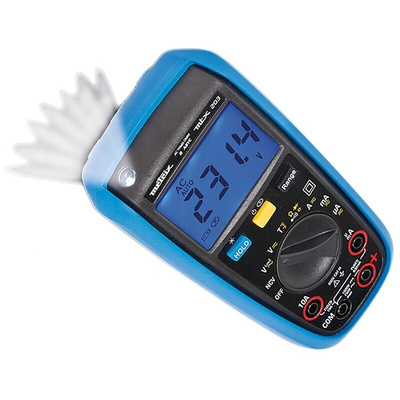

Backlit screen and built-in torch
Ergonomic design
Shockproof sheath with storage slots for leads

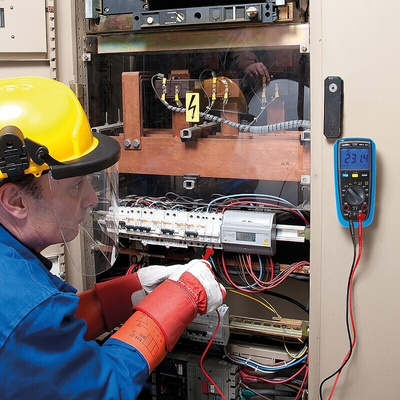

Sheath magnetised for easy mounting on electrical cabinets
Instrument dimensions 170 x 80 x 50 mm
Weight 320 g

Added Benefits:

Ideal for diverse uses in multiple environments
Meets the needs of all self-employed electricians
Ideal for day to day use
Compact casing
Fits comfortably in one hand
Easy to pack into a toolbox
Handy for use in the field

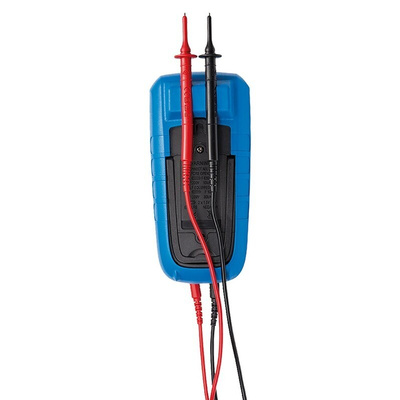

Leads can be fixed in place at the back of the multimeter
Stand for hands free use
Fuse and batteries easy and quick to replace

What Is Included?

1 Shockproof sheath
1.5 m Lead with 4 mm elbowed plug / Red CAT III 600 V test probe
1.5 m Lead with 4 mm elbowed plug / Black CAT III 600 V test probe
Flexible K thermocouple with 40mm adapter
2 x 1.5 V AA batteries
1 Operating paper manual

Standards

IEC 61010-2-033 600 V CAT III

Supplied with

Shockproof sheath, 1.5 m straight lead / red CAT III 600 V test probe, 1.5 m straight lead / black CAT III 600 V test probe, flexible K thermocouple with 4 mm diameter adapter, operating manual, 1.5 V AA batteries (x2)

Datasheet MTX 203

User's Manual MTX 203
