0560 1410, Testo 410i Vane Anemometer, 30m/s Max, Measures Air Velocity, Temperature, Анемометр

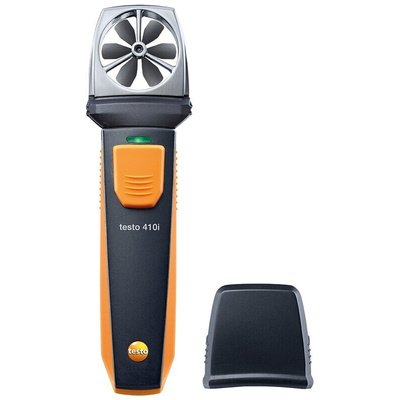

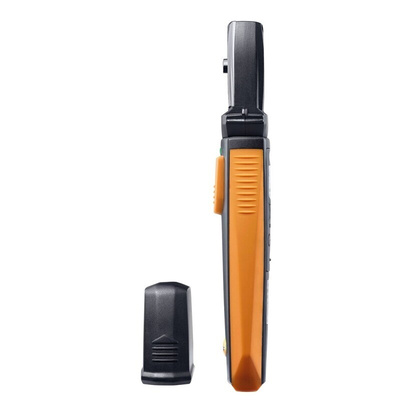

testo 410i Vane Anemometer Smart and Wireless Probe

The Testo 410i is a compact wireless vane anemometer designed for measuring air flow, volume flow and temperature. The pocket-sized instrument provides fast accurate readings at ventilation grilles, ducts and air outlets. Constructed from high-quality impact resistant materials the tough mini anemometer is the ideal instrument for HVAC technicians and service engineers.

The small, perfectly formed anemometer uses a precision 40 mm rotating vane sensor and built-in NTC thermistor sensor to deliver readings with extreme accuracy. The 410i anemometer records wind speed from 0.4 to 30 m/s while the NTC sensor range goes from -20 to +60 °C.

The Testo 410i handheld anemometer connects via Bluetooth to Android, iOS smartphones and tablets. It can display real-time air temperature, airflow velocity and volume flow measurements on to the user's screen. The Testo Smart Probes App enables you to configure, view and calculate all from your mobile device. Additionally, all data and information can be saved into Excel and PDF formats for logging and sharing. Up to six separate devices can link to the App at any one time allowing remote system set up and monitoring.

Testo Smart Probes App

The Testo Smart Probes App is available to download free from the App Store or Google Play and is compatible with all of the instruments from the Testo Smart Probes range. The app can display real-time measurements and results on the screen. Anything up to six Smart Probes can work in tandem and the information (including pictures) can be saved in Excel or as a pdf document.

Features and Benefits

• Slim, lightweight design
• 40mm Vane and NTC sensors
• Fast, accurate, easy to read results
• Measures airflow speed, volume flow and temperature
• Measurement ranges 0.4 to 30 m/s and -20 to +60°C
• Connects via Bluetooth to smartphone or tablet
• Up to 6 devices can connect at any one time
• Free Testo Smart Probes App for display and data analysis
• Save results in Excel or PDF
• Compatible with iOS 8.3 or newer, Android 4.3 or newer + Bluetooth 4.0
• 200 hour battery life / 3 x AAA batteries

Applications

• HVAC system performance
• Building and construction
• Environmental testing
• Clean rooms
• Fans / motors / blowers
• Meteorological studies
• Wind direction, wind speed and gust

Note

Requires iOS 8.3 or newer, Android 4.3 or newer, mobile end device with Bluetooth 4.0

Testo Smart Vane Anemometer, 154mm Length, 21mm Height - Smart Probe Series - 0560 1410

Make measuring air temperature and velocity easy with this smart vane anemometer from Testo. It's suitable for regulating the airflow of ventilation units or for monitoring temperature at air outlets. The pocket-sized instrument is easy to transport, helping you to move from one field job to the next with ease. Bluetooth technology offers a quick and simple connection to your tablet or smartphone for convenient analysis and configuration of your data.

Features & Benefits

• Compact dimensions of 154 (length) x 21mm (height) for taking readings in constricted areas, such as ducts and ventilation grilles
• Constructed from high-quality, impact-resistant material for use in harsh working conditions
• Ability to save data in Excel or as a PDF (portable document format) for easy data logging and sharing

Applications

• Heating and cooling systems
• Commercial warehouses
• Storage facilities

What range of temperatures and wind speeds is this device able to measure?

This anemometer records wind speeds from 0.4 to 30m/s (meters per second) and is able to gauge temperatures ranging from -20°C to +60°C. It uses a precision 40mm rotating vane sensor and built-in NTC (negative temperature coefficient) thermistor to deliver accurate readings.

Datasheet

Instruction Manual
