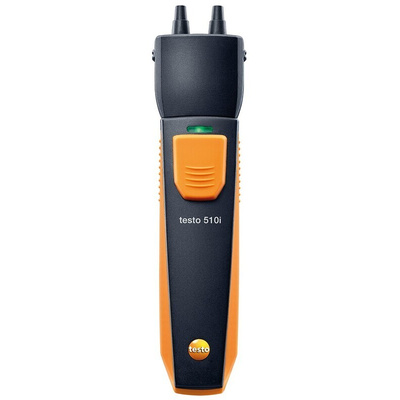

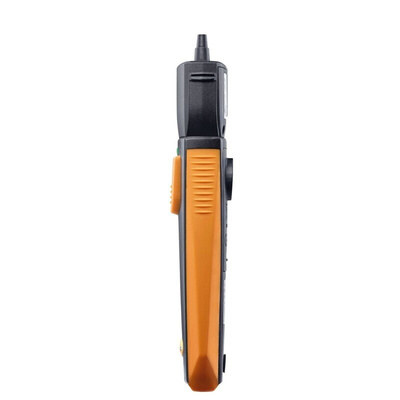

0560 1510, Testo 510i Differential Manometer With 1 Pressure Port/s, Max Pressure Measurement 150hPa

testo 510i Differential Pressure Meter, Bluetooth

The differential pressure gauge testo 510i, in combination with a smartphone or tablet, is suitable for measurements of gas flow and static pressure, pressure drops on ventilators and filters, and for pressure-drop tests on gas pipes. It can also be used for determining air flow velocity and volume flow. Via the testo Smart Probes App installed on the end device, users can comfortably read off their measurement values, configure volume flow measurements quickly and easily, and reliably determine timed and multi-point mean values. The App also includes a measurement menu for the pressure-drop test including alarm. All measurement data can be presented either as a diagram or in tabular form. The measurement protocols can then be sent directly as PDF or Excel files.

Professional measuring instrument for use with smartphones/tablets
Measurement of gas flow and static pressure, as well as volume flow
Measurement menu for pressure-drop test including alarms
Measuring range -150 to 150 hPa
Easy configuration and determination of the volume flow with Pitot tube
Magnetic fixture for better attachment
Measurement data analysed and sent via testo Smart Probes App
Small, compact and easy to transport
Dimensions 148 x 36 x 23 mm

Note

Requires iOS 8.3 or newer, Android 4.3 or newer, mobile end device with Bluetooth 4.0

Supplied with

Hose set (diameter 4 mm and 5 mm), adapter, AAA batteries (x3), calibration protocol

Testo Manometer, 150hPa Maximum, ±0.05hPa - 510i Series - 0560 1510

Use this manometer from Testo to measure both the air flow velocity and the volume flow of a fluid. It's also suitable for measuring gas flow, static pressure, pressure drops on ventilators and pressure-drop tests on gas pipes. The device connects to Testo's Smart Probes App on your smartphone for ease of use. The manometer sends the data to the app, which presents it as a diagram or a table. You can then use the app to convert the data to a PDF or Excel file for simple organisation and interpretation of data.

Features & Benefits

• Wide pressure measurement range of -150 to +150hPa (hectopascals) for use with high or low-pressure systems
• Broad operating temperature range of -20°C to +50°C for use in demanding environments
• Compact dimensions of 148 (length) x 36 (width) x 23mm (height) for use in confined spaces
• Supplied with three AAA micro batteries with an operational lifetime of 150 hours for long-lasting use
• Magnetic back for simple wall mounting

Applications

• Air vents
• Heating systems
• Gas leak detection
• Blood pressure measurement
• Compressor systems

How does this manometer connect to your smartphone?

This manometer connects wirelessly to your smartphone using Bluetooth, so there's no need for extra cords or accessories.
