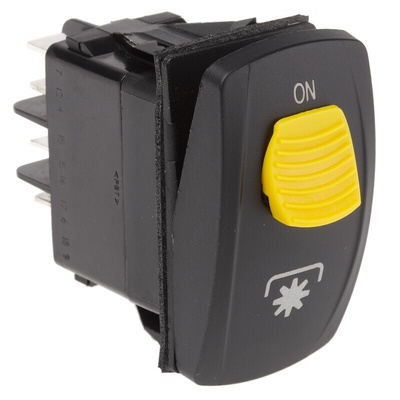

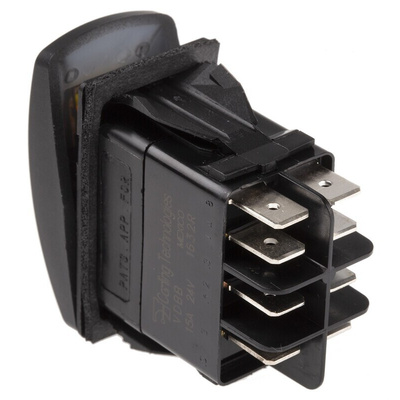

VDBBHYPC-XZXXX-1XPTO1, Carling Technologies Illuminated DPDT, On-(On) Rocker Switch Panel Mount, Клавишный переключатель

9132825
Номер производителя: VDBBHYPC-XZXXX-1XPTO1Производитель: Carling Technologies
Цена за шт.
4531.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

V Series Sealed Contura Rocker Switches

From Carling Technologies, the Contura V series of sealed rocker switches designed for panel mounting. The IP65/68 waterproof switches are robustly constructed from toughened engineering materials providing complete protection from dust, extended spray and submersion. Contura V switches are recognized to UL1500 – Ignition Protection for Marine Products. These switches are shock, vibration, thermos-shock, moisture and salt spray resistant.

Illuminated and Non-illuminated
The Contura V series of rocker switches are available in both standard non-illuminated or illuminated versions with incandescent, neon and a wide variety of LEDs including superbrite,
flashing and bi-colour.

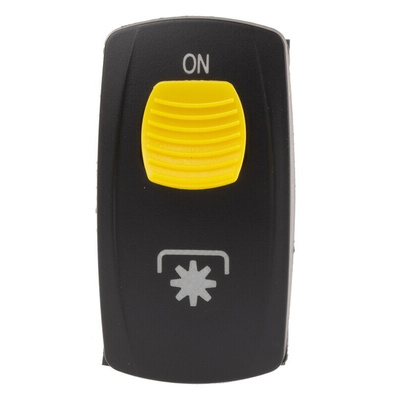

Removable actuators
With an extensive range of removable rocker actuators in various legend designs and colours, the Contura V rocker switches provide countless options for panel designs. A handy actuator tool is available separately for quick removal and replacement of rocker faces. ( part number 665-562)

Switch operation and contact configuration
With a choice of momentary or latching switching in single pole double pole and triple pole contact configurations, the V series of rockers offer an array of circuit solutions.

Panel mounting
Fitting is easy, once the recommended panel cut-out is made ( 21.8 x 36.8) the panel mount rocker switches simple snap in to the aperture. The multi-step mounting wings provide a secure fit for panel thicknesses of 0.8 mm to 6.35 mm.

Features and Benefits

• IP66/68 ingress protection
• Dual seal protection
• Vibration, shock, thermos-shock, moisture and salt spray resistant
• Interchangeable actuators with a choice of multiple symbols

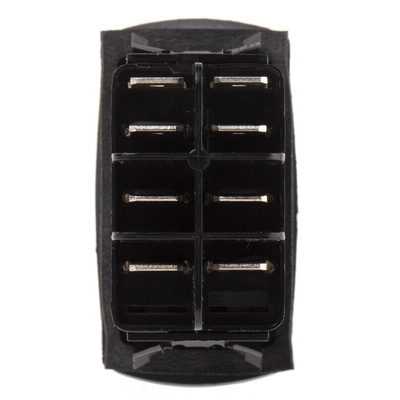

• Connection via 6.3 mm quick connect blade terminals
• SPST, SPDT, DPST, DPDT and 3PDT contact configurations
• On-Off, On-Off-On, Off-On-On, and On-On-On switching operations

Typical applications for sealed rocker switches

Rocker switches are one of the most frequently used types of electrical switch in the market today. The Contura V-series of waterproof switches is designed specifically for harsh environments. Some of the most common are:

• Marine and shipping
• Highway and motorway vehicles and machinery
• Mining machinery

FAQ

Are the rocker switches easy to connect?
Yes, the V series of rocker switches are fitted with industry standard 6.35 x 0.8 mm quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.

Carling Technologies® Rocker Switches

Техническая спецификация
pdfV-Series Datasheet
pdfV-Series Contura Actuator Styles
Высота выреза в панели:
36.83мм
Диапазон рабочих температур:
-40 → +85°C
Конфигурация контактов:
DPDT
Корпус материал:
Полиэстер
Материал контактов:
Серебро, Серебряный сплав, Оксид серебра и олова
Механический ресурс:
150000циклов
Номинальный ток контакта:
15 A
Освещенный:
Да
Постоянный ток - номинальное напряжение:
24В
Работа выключателя:
On-(On)
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Размеры выреза в панели:
36.83 x 21.08мм
Сопротивление контакта:
10мОм
Степень защиты IP:
IP66, IP68
Тип клеммы:
Быстрое соединение
Тип монтажа:
Крепление на панель
Форма актуатора:
Прямоугольный
Цвет привода:
Черный
Ширина выреза в панели:
21.08мм
