RS PRO SDI Coaxial Cable, 100m, RG6 Coaxial, Unterminated, Кабель

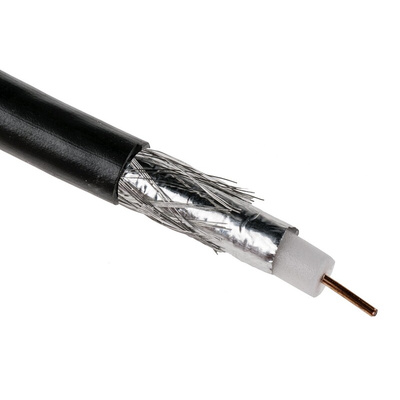

RS PRO Black Unterminated to Unterminated RG6 Coaxial Cable, 75 Ω 6.5 mm OD 100 m

Need to transmit cable or satellite signals? This RG6 coaxial cable from RS PRO is thin and easy to bend. This makes it popular for wall or ceiling cable TV installations. It's unterminated so you can fit the required connectors.
The foamed polyethylene (FPE) insulation material and aluminium foil shielding are tuned for high-bandwidth applications, making this cable also suitable for Internet connections. Copper-clad steel conductors combine tensile strength with excellent conductivity.
The cable can be used at temperatures between -10°C and +70°C. It's sheathed in flame-retardant PVC (polyvinyl chloride), which will slow the spread in the event of a fire. RG6 cables are recommended for use with equipment using frequencies above 50 MHz.

Features and Benefits

• Attenuation of 5.2 dB/100 m at 100 MHz
• Single-core cable shape
• Characteristic impedance of 75 Ω
• RG6 coaxial type
• Copper-clad steel conductor material
• Solid conductor strand type
• Connector A is an unterminated connector type
• Connector B is an unterminated connector type
• FPE insulation material
• Length of 100 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -10°C
• One strand
• Operating temperature range of -10°C to +70°C
• Outer diameter of 6.5 mm
• Reel length of 100 m
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Aluminium foil shielding
• Strand size of 1 mm
• RoHS (Restriction of Hazardous Substances) compliant
• Unterminated
