P01140832, Chauvin Arnoux CA 6532 Insulation & Continuity Tester, 50V Min, 100V Max, 20GΩ Max, CAT IV - RS Calibration, Измеритель сопротивления изоляции

Chauvin Arnoux Insulation and Continuity Tester for Telecom Applications

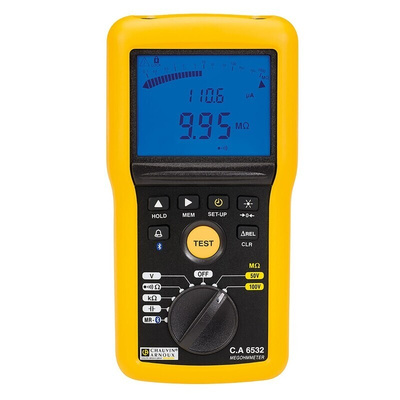

Chauvin Arnoux model C.A 6532 is a simple-to-use insulation and continuity tester designed for telecommunications applications. It is the instrument of choice for measurements on telephone lines by insulation testing at 50 V or 100 V. Its ΔREL function can be used to obtain the difference in resistance between two pairs of wires. The length of the line being tested is displayed automatically by programming the line capacitance in nF/km.

Features and Benefits

Insulation tests at 50 V or 100 V
Measurement of resistance, capacitance, leakage current and AC voltage
Measurement of difference in resistance between 2 wires in a pair by using the ΔREL function
Display of length of line being tested, because of programming linear capacitance in nF/km
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54

Supplied with

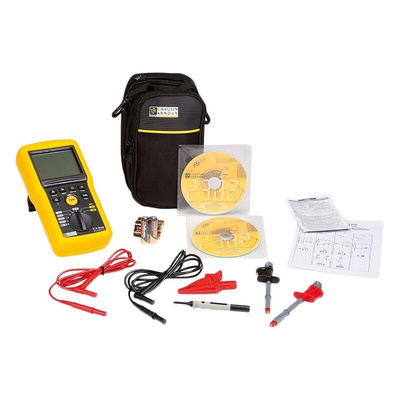

Carrying bag for hands-free use, elbowed-straight safety leads 1.5 m long (1 red, 1 black) , red crocodile clip, black test probe, wire-grips (1 red, 1 black), batteries (x6), multilingual user manual on CD, quick start-up guide, multilingual safety datasheet, CD containing Megohmmeter Transfer software
