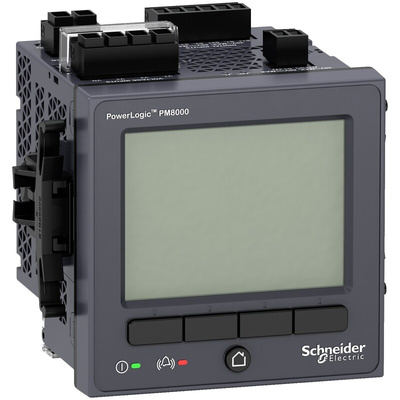

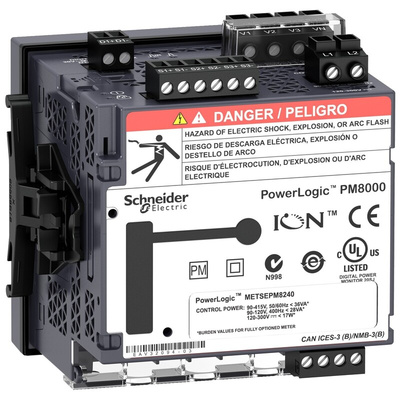

Schneider Electric Electromechanical Digital Power Meter

The Schneider Electric PM8000 series 3-phase electromechanical digital power meter allows measuring electrical parameters such as voltage, current and frequency with a measuring range of 57VAC to 400VAC (Phase and Neutral), 100VAC to 690VAC (Phase), 50mA to 10A and 42Hz to 69Hz. This DIN-rail mount device helps to improve energy efficiency, sub-bill or allocate costs and improves productivity. These improvements are done by tracking consumption and identifying conditions that could pose risks to the equipment and processes. The power meters are easy to install and have simple networking, making energy information accessible, while integration with StruxureWare applications makes information relevant and actionable. It is built on a unique modular architecture that enables highly customised functionality and continuous added value.

Features and Benefits

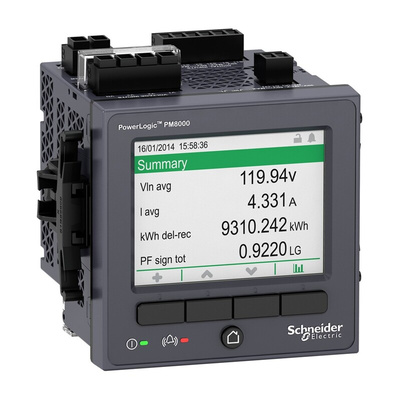

Colour, graphical, high-resolution display offers local data access with multi-language support
Configurable alarms
to trigger recording, perform control, send email or text messages
CT and VT polarity reversible via front panel, web page or software
Customisable on-board web pages

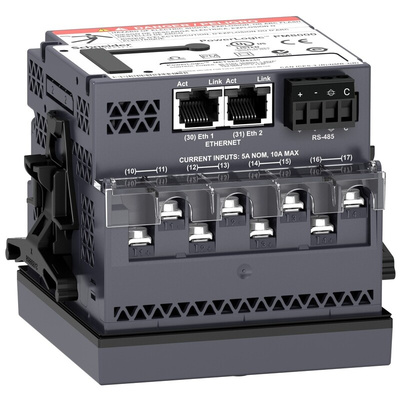

Dual-port Ethernet supports daisy-chaining, redundant loops and multiple protocols
Email ’push’ historical data files
Ethernet-to-serial gateway
Event logging
Fast configuration due to various form factors, pluggable connectors and a free setup application
High-accuracy energy metering
Historical trend logging for energy, demand, power factor or any other parameter
Minimum/maximum data logging
Modbus master functionality
Panel or DIN rail mounting (depending on model)
RS485 serial port
Secure, configurable user accounts
Variety of models with or without display
Meter accuracy is ±0.1 % (Current), ±0.1% (Voltage), ±0.2% (Active Energy)

Applications

Apply complex logic for alarming or control
Perform WAGES unit conversion
Tailor data visualisation and reporting
Totalise energy data from multiple meters

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
