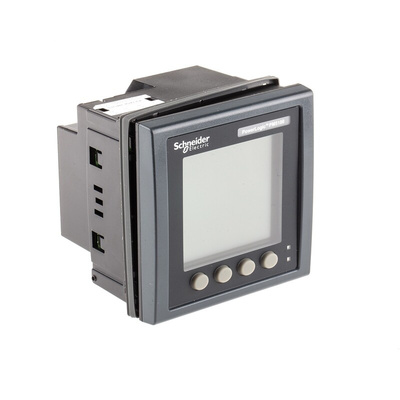

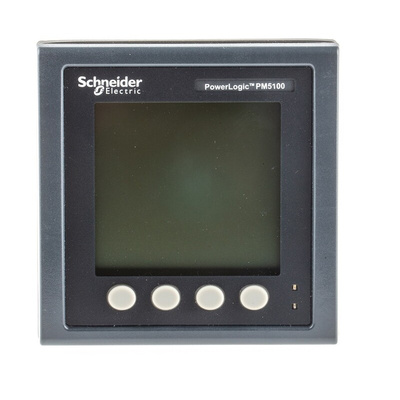

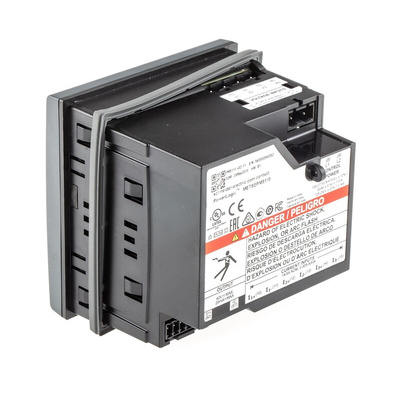

METSEPM5110, Schneider Electric 3 Phase LCD Digital Power Meter, Type Electromechanical, Измеритель мощности

Schneider Electric Power Meters - Basic Multi-function - PM5000 Series

Providing an ideal solution for cost management applications, the PM5000 Series features measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pinpoint energy savings, optimise equipment efficiency and utilisation as well as perform a high-level assessment of the power quality of an electrical network.

• Each unit within this range is 96 x 96 mm, they all have a modern, graphical display


• All three phases, neutral and ground can be monitored simultaneously


• Features bright, anti-glare display accompanied by large characters and powerful backlighting which is great for reading even when within extreme lighting conditions and viewing angles


• The menus are very easy to understand with 8 selectable languages, the menu also has graphics and icons to make learning about your electrical network more visually friendly


• Each device has a global billing certification


• Super easy to install, the power meter mounts using two clips - no tools are required


• Even easier to operate with intuitive navigation


• Suitable for a wealth of applications including circuit breaker monitoring and control, cost management (sub billing/tenant metering & cost allocation), Network management (basic power monitoring, min/max monitoring with timestamp), Alarming and WAGES monitoring

Schneider Electric Digital Power Meter, Power Quality Analysis Up to 15th Harmonic, Sampling Rate of 64 Samples/Cycle - PowerLogic PM5000 Series - METSEPM5110

Keep a close watch on energy use in your electrical system with this digital power meter from Schneider Electric. It's a versatile option that measures values from active and reactive power to frequency, voltage and current. For versatile use, it supports a wide voltage measurement range between 20 and 400V AC between the phase and neutral wires and 35 and 690V AC between phases. This makes it a handy solution for tracking low and high voltages in your electronic device.

Features & Benefits

• Backit LCD display for easy reading of data
• Integrated JBUS and Modbus RTU communication protocols for convenient data transfer and analysis
• Shows minimum and maximum instantaneous values to track trends
• Results are time-stamped for hassle-free recording
• 64 samples per cycle for rapid testing

Applications

• Networking equipment
• Power plants
• Medical facilities

What's the current measurement range of this meter?

Thanks to a current measurement range between 10mA and 9A, you'll find this device handy for testing your low-current systems.

How accurate are the active and reactive power measurements from this meter?

This meter has an active power and energy accuracy of +/-0.5% and a reactive energy accuracy of +/-2%, so there's minimal risk of error.
