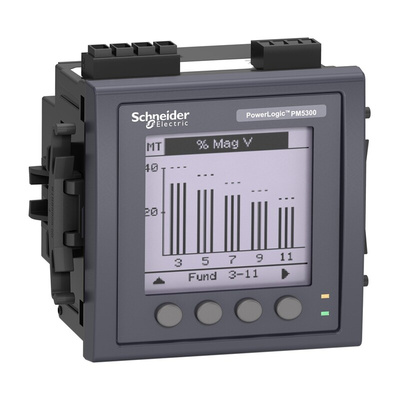

Schneider Electric Power Meters - Basic Multi-function - PM5000 Series
Providing an ideal solution for cost management applications, the PM5000 Series features measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pinpoint energy savings, optimise equipment efficiency and utilisation as well as perform a high-level assessment of the power quality of an electrical network.
- Each unit within this range is 96 x 96 mm, they all have a modern, graphical display
- All three phases, neutral and ground can be monitored simultaneously
- Features bright, anti-glare display accompanied by large characters and powerful backlighting which is great for reading even when within extreme lighting conditions and viewing angles
- The menus are very easy to understand with 8 selectable languages, the menu also has graphics and icons to make learning about your electrical network more visually friendly
- Each device has a global billing certification
- Super easy to install, the power meter mounts using two clips - no tools are required
- Even easier to operate with intuitive navigation
- Suitable for a wealth of applications including circuit breaker monitoring and control, cost management (sub billing/tenant metering & cost allocation), Network management (basic power monitoring, min/max monitoring with timestamp), Alarming and WAGES monitoring
DatasheetProduct GuidePowerLogic PM5300 Series Power and Energy Meter User GuideProduct Environmental ProfileВерификация Better World:
Green Premium
Глубина:
72мм
Диапазон измерений:
10 mA → 9 A, 20 → 400 (Phase and Neutral) V ac, 35 → 690 (Phase) V ac, 45 → 65Hz
Количество фаз:
3
Максимальная температура:
+70°C
Максимальная точность измерений:
9 A, 65 Гц, 400 (Фаза и нейтраль) В перем. тока, 690 (Фаза) В перем. тока
Минимальная температура:
-25°C
Минимальное измерение:
10 mA, 45 Hz, 20 (Phase and Neutral) V ac, 35 (Phase) V ac
Серия:
PM5000
Соответствия:
CE Conforming to IEC 61010-1c, CULus Conforming to UL 61010-1, EN 50470-1, EN 50470-3, IEC 60529, IEC 61557-12, IEC 62053-22, IEC 62053-24
Тип дисплея:
LCD
Тип счетчика:
Электромеханический
Товар Better World:
Да
Точность измерения:
±0.005 (Power Factor) %, ±0.05 (Frequency) %, ±0.5 (Active Energy) %, ±0.5 (Active Power) %, ±0.5 (Apparent Power) %, ±0.5 (Current) %, ±0.5 (Voltage) %, ±2 (Reactive Energy) %
