RS PRO SPDT, On-Off-On Rocker Switch Panel Mount, Клавишный переключатель

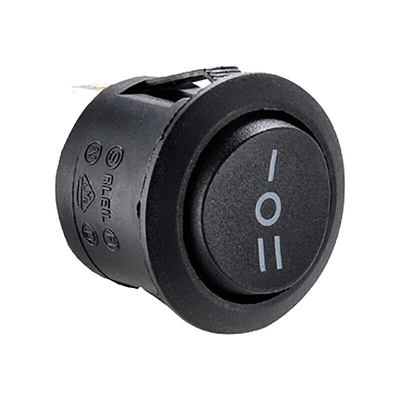

RS PRO Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount

Complete a new design or replace an existing panel with the RS PRO single pole double throw (SPDT), on-off-on rocker switch panel mount. It's used across a range of domestic and commercial applications, from vacuum cleaners to central heating and HVAC (heating, ventilation and air conditioning) systems.

This switch features a latching centre-switching action. This means it's switched off by the user and then remains off until it's switched on again. It has a single pole double throw functionality, so it has a single input and can connect to and switch between two outputs.

Like all of our RS PRO branded products, it's been tested to ensure it's durable and reliable. The switch has an electrical lifespan of roughly 10,000 cycles. It's capable of operating in extreme temperatures, ranging from -25°C to +125°C and is RoHS compliant for minimal hazardous materials.

Features and Benefits

• Single pole double throw (SPDT) contact configuration

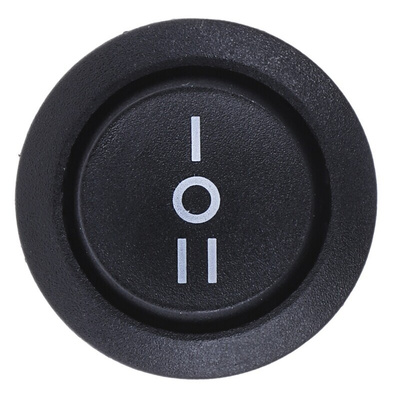

• Round On-Off-On rocker switch
• Panel cutout dimensions of (W) 20.8 mm, x (H) 20.6 mm
• Panel cutout diameter of 20 mm
• Contact current rating of 10 A
• Non-illuminated
• Black actuator
• Panel mounted

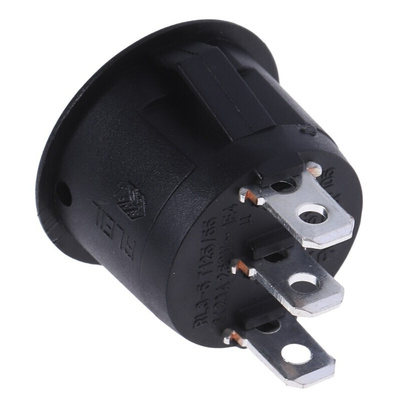

• Quick connect terminal
• Round actuator
• Silver alloy contacts
• AC voltage rating of 125 V, 250 V
• Operates temperature range of -25°C to +125°C
• Nylon casing
• Contact resistance of 30 mΩ
• Mechanical life of 10,000 cycles
• RoHS compliant for minimal hazardous materials

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
