RS PRO Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPST, 36V dc, IP65, Кнопочный переключатель

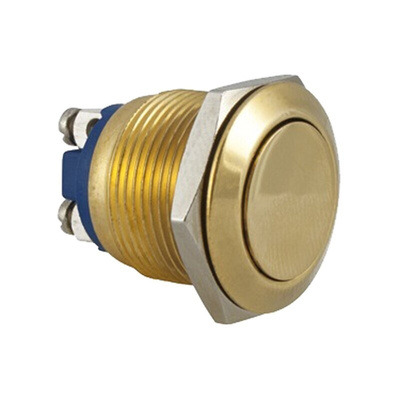

RS Pro Anti-Vandal Push Button, IP65

These anti-vandal push button switches are ideal for applications requiring a strong, rugged switch. They are IP65 rated and have an electrical life expectancy of 200,000 cycles.

They yellow halo version comes in two sizes of either 16mm or 19mm. The 16mm version is domed and the 19mm version has a flat actuator. The brass body option is available in a 19mm panel cut out size. They can be mounted on panels between 1mm and 10mm thick and have screw terminal for easy instillation.

Features

Switching: 1NO Momentary
Switch rating: 2 A at 36 V dc
Mechanical life: 1,000,000 cycles
Electrical life: 200,000 cycles
Operating Pressure: 4N approximately
Operating Travel: 1.5mm approximately
Ingress protection: IP65
Operating temperature range: -25 °C to +55 °C
