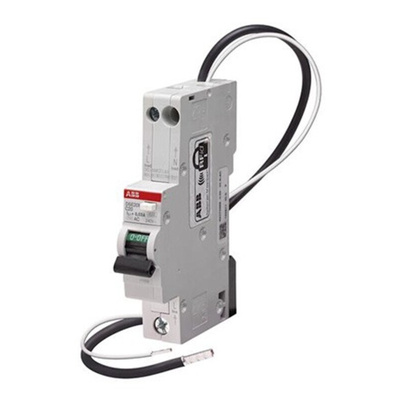

2CSR255051R1064 DSE201 C6 AC30 - N Blue, ABB RCBO, 6A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 240V AC Voltage Rating, 6kA Rated Breaking Capacity - DSE201 Series - 2CSR255051R1064 DSE201 C6 AC30 - N Blue

For all-round electrical protection, pick this RCBO from ABB. When a problem pops up, it instantly disconnects power to your circuit to keep you and your equipment safe and sound from short circuits, earth leakages and overloads. The unit accommodates busbars and different types of conductors, so it's a cinch to integrate into your existing setup. Thanks to compact dimensions of 100 (H) x 68.9 (W) x 17.6mm (D), this is a sure fit when space is limited.

Features & Benefits

• Functional earth wire provides continuous protection even if the neutral malfunctions
• Performs reliably in demanding environments, thanks to a broad operating temperature range between -25°C and +55°C
• Screw terminals achieve a firm grip on wires to help prevent accidental disconnection

Applications

• Food and beverage processing
• Medical devices
• Schools and colleges

How do I mount this RCBO?

Mounting this device is easy as can be. Just clip it onto a DIN rail to install it in a snap. You can also mount it on a chassis for versatility.

Is this RCBO safe to handle?

Yes, its housing has an IP2X rating, which means it's finger-safe and protected against objects larger than 12mm.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Datasheet

Datasheet - 2CSR255051R1064 DSE201 C6 AC30 - N Blue
