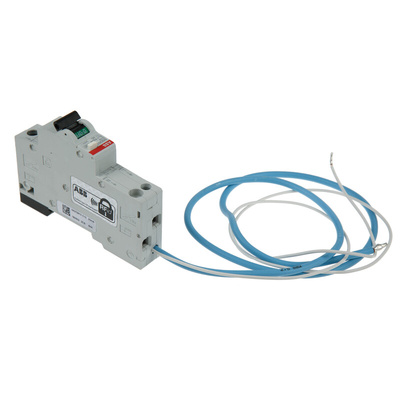

2CSR255051R1104 DSE201 C10 AC30 - N Blue, ABB RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 264V Maximum Operating Voltage, 6kA Breaking Capacity - DSE201 Series - 2CSR255051R1104

Achieve all-round electrical safety with this RCBO from ABB. It steps in to disconnect power when a problem crops up to protect against short circuits, overload and earth leakage currents. For fuss-free integration with your existing setup, the device works with 10mm² busbars, as well as rigid and flexible conductors up to 25mm². It's a tough component that doesn't break a sweat in demanding environments, thanks to its -25°C to +55°C operating temperature range. Slimline dimensions of 17.5 (L) x 100 (W) x 68.9mm (D) make it easy to fit inside standard enclosures.

Features & Benefits

• IP20-rated casing keeps objects larger than 12.5mm out, making it touch-proof
• Shock resistance prevents accidental disconnections and service interruptions
• Light weight of 180g is easy to handle and won't strain your DIN rail
• Colour-coded contact position indicator for increased safety

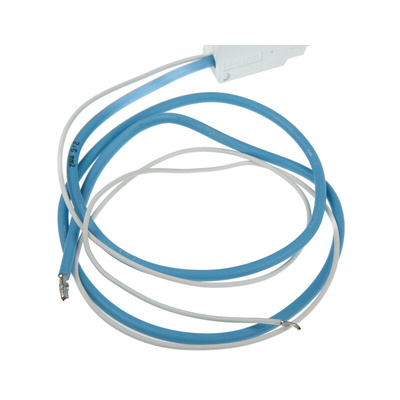

• Included earth and neutral wires save installation time and effort

Applications

• Critical medical equipment
• Industrial control instruments
• Telecommunication setups
• Electrical installations

What's the lifespan of this RCBO?

With 10,000 and 20,000 electrical and mechanical endurance cycles respectively, you can count on this unit to perform reliably time after time.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
