2CSR255051R1105 DSE201 B10 AC30 - N Blue, ABB RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, Screw Terminals, 180g Weight - DSE201 Series - 2CSR255051R1105

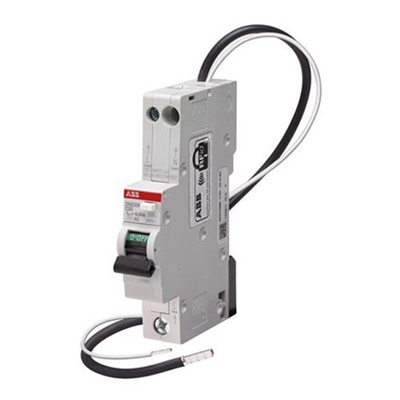

Safeguard your electrical circuits against overloads and earth faults using this RCBO from ABB. It does double duty by combining the functions of a residual current device and a circuit breaker into a single unit. As the device has type-B tripping characteristics, it acts when the supply is 3 to 5 times its 10A rating. This makes it suitable for domestic applications where small current surges are common. You can mount this versatile component on a DIN rail in any position that suits your system.

Features & Benefits

• Comes with a neutral wire and functional earth wire for enhanced electrical safety
• Mechanical lifespan of 20,000 cycles means it performs reliably over long periods
• Screw terminal type makes it quick to install with a simple screwdriver
• Trip sensitivity of 30mA for effective protection against electric shocks
• Straightforward device with 1 pole to monitor a single circuit

Applications

• Residential buildings
• Data centres
• Healthcare facilities

How do I monitor the status of this RCBO?

It has a red ON / green OFF indicator to give you a clear view of its status at all times.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
