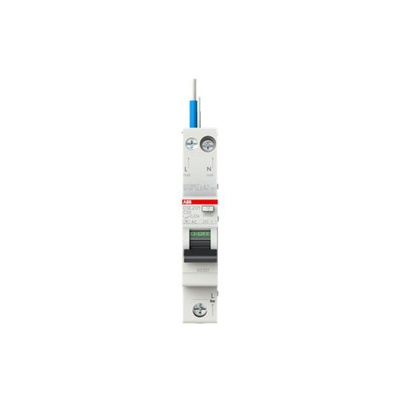

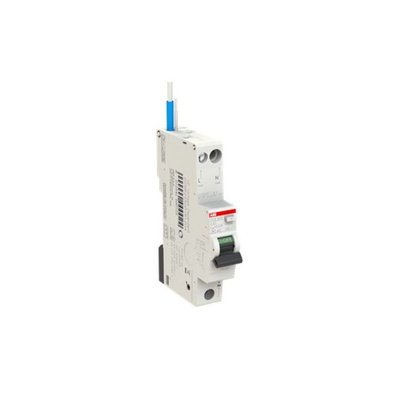

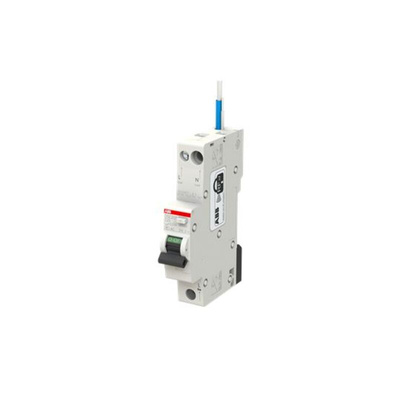

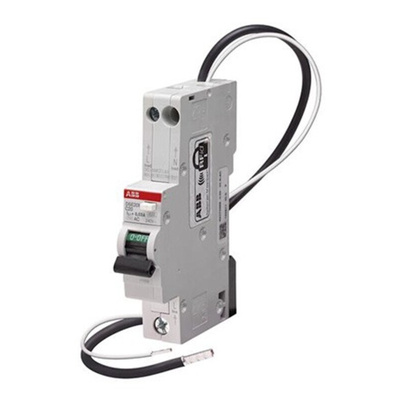

2CSR255051R1204 DSE201 C20 AC30 - N Blue, ABB RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range, Автоматический выключатель

9144051
Номер производителя: 2CSR255051R1204 DSE201 C20 AC30 - N BlueПроизводитель: ABB
Цена за шт.
22974.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ABB RCBO, Screw Terminals, 180g Weight - DSE201 Series - 2CSR255051R1204 DSE201 C20 AC30 - N Blue

Need to get on top of electrical safety? Use this RCBO from ABB to detect and interrupt problems including overloads, short circuits and earth faults. Since it has thermal-magnetic tripping and instantaneous operation, it works swiftly and reliably, keeping equipment and users safe from harm. Streamlined dimensions of 100 (H) x 68.9 (D) x 17.5mm (W) make it a compact solution for setups with limited space. Its terminals have an IP20 rating, indicating that the unit's protected against dust and objects over 12mm in size, so you can touch it without running the risk of electric shock.

• Broad operating temperature range between -25°C and +55°C to withstand harsh environments
• Screw terminals support secure wiring without needing special tools
• Power supply connection at the bottom for convenient installation

Applications

• Healthcare facilities
• Data centres
• Residential buildings
• Electrical systems

How long will this RCBO last?

It has a mechanical lifespan of 20,000 cycles, so you can be sure of reliable long-term performance.

How do I mount this RCBO?

You can mount it in a snap onto a standard 35mm DIN rail.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Техническая спецификация
pdfDatasheet
pdfCatalogue - DSE201, DSE201 M
pdfDatasheet -2CSR255051R1204
