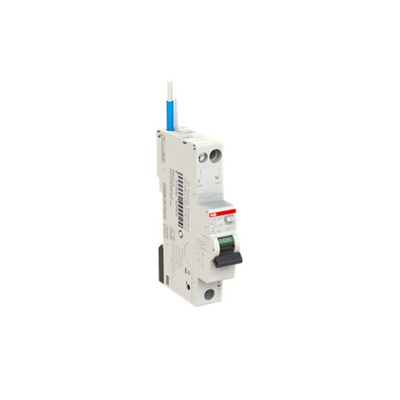

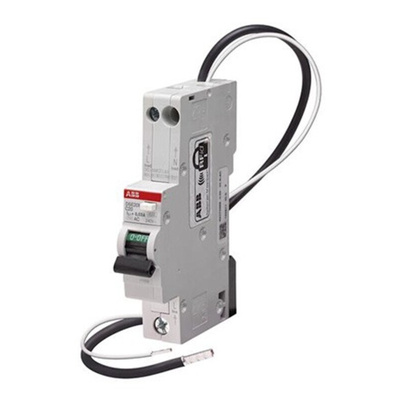

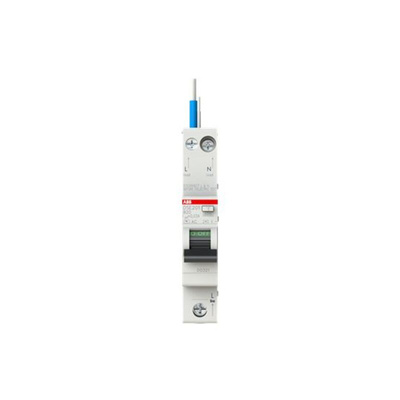

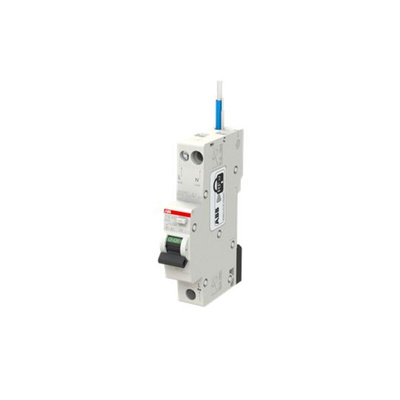

2CSR255051R1205 DSE201 B20 AC30 - N Blue, ABB RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 240V AC Voltage Rating, Thermomagnetic Trip Type - DSE201 Series - 2CSR255051R1205 DSE201 B20 AC30 - N Blue

Thanks to this hard-working RCBO from ABB, it couldn't be easier to get all-around electrical protection. The device has a combination of thermomagnetic and residual-current breakers, along with an earth wire. This enables it to safeguard against short circuits, overloads and earth fault currents, as well as electric shocks. A type-B tripping characteristic and 6kA breaking capacity mean it works quickly to stop high currents from wreaking havoc. Red and green toggle position indicators make it easy to identify the unit's status when you're on the go.

Features & Benefits

• Test button makes it a doddle to do checks
• Operates without a hiccup in a temperature range between -25°C and +55°C
• Double clips make it easy to mount and remove from a crowded DIN rail
• Roomy terminal slots give you the flexibility to attach cables up to 25mm², rigid conductors and busbars

Applications

• Residential buildings
• Commercial units
• Consumer units
• Distribution boards
• Low-voltage systems

Is this RCBO durable?

Yes, it's a hardwearing option with a lifespan of 20,000 mechanical cycles and 10,000 electrical cycles.

What type of terminals does this device have?

This RCBO has cage-screw terminals for a secure and reliable connection. Wide terminal holes give you easy access with an insulated screwdriver.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
