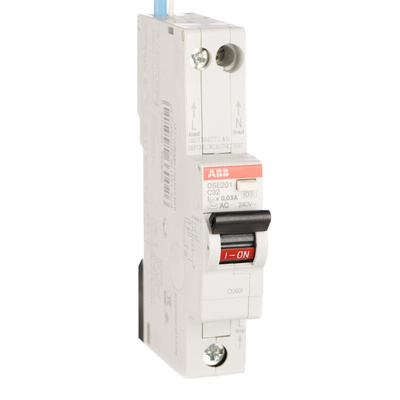

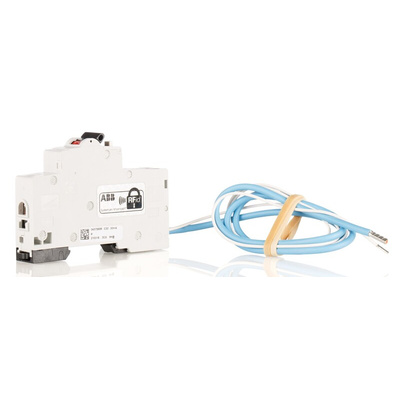

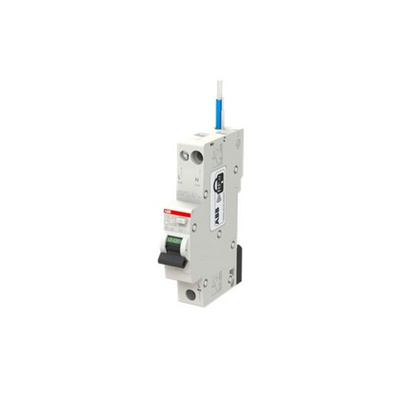

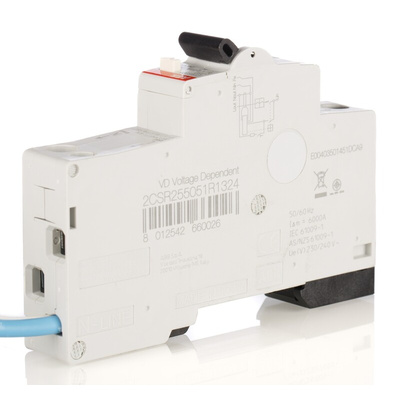

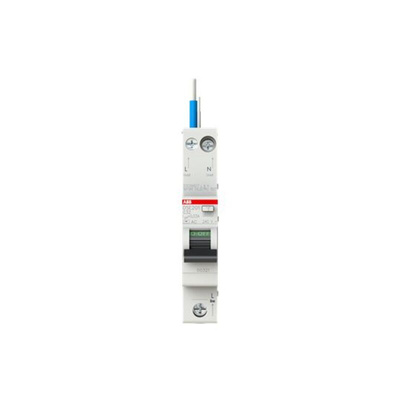

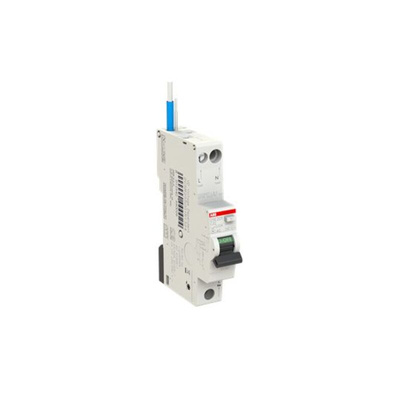

2CSR255051R1324 DSE201 C32 AC30 - N Blue, ABB RCBO, 32A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 240V AC Maximum Operating Voltage, 30mA Trip Sensitivity - DSE201 Series - 2CSR255051R1324

Take charge of electrical protection with this 1P+N RCBO from ABB. It's an all-rounder that safeguards equipment against short circuits, earth leakages and overloads. The versatile unit accommodates busbars and rigid and flexible conductors, so it has all your systems covered. Rugged plastic housing stands up to workplace impacts and vibration, ensuring the breaker performs reliably. Plus, the casing has an IP40 rating, meaning it shields internal wires and contacts against objects larger than 1mm. An easy-to-use toggle switch makes resets a cinch.

Features & Benefits

• 32A current rating has the muscle to handle heavy-duty applications
• Wide operating temperature range between -25°C and +55°C for versatility
• IP20-rated terminals are touch-safe for improved electrical safety

Applications

• Lighting systems
• Medical equipment
• Assembly and packaging lines
• Food and beverage processing

How big is this breaker?

With dimensions of 17.5 (L) x 100 (W) x 68.9mm (D), it's a compact device that takes up little space.

How do I mount this RCBO?

Mounting is a piece of cake – just snap the unit onto a DIN rail and you're all set.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Datasheet

Catalogue - Electrical Installation Solutions For Buildings Residual Current Devices

Datasheet - 2CSR255051R1324
