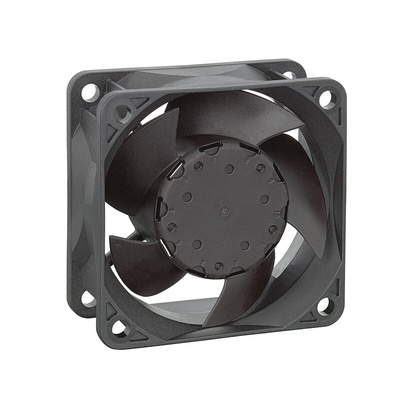

632NU, ebm-papst 630 Series Axial Fan, 12 V dc, DC Operation, 40m³/h, 1.8W, IP68, 60 x 60 x 25mm, Вентилятор

ebm-papst IP68 Protected DC Compact Fans

Ebm-papst ingress protected IP68 fans are ideal for operation in the harshest of environments. These fans are designed to perform subject to high dust, high humidity and direct water exposure both in and outdoors. They are ideal for wash-down situations and cannot be damaged by continuous immersion in water making them suitable for a broad range of applications. With a construction based on the entire motor (winding and PCB) being completely coated in plastic, the integrated operating electronics of ebm-papst IP68 fans are completely encased and the cable connection is specially sealed.

Features and Benefits

• IP68 compliant DC fans with electronic rotor switching and integrated electronic switching regulation
• Fibreglass-reinforced plastic, PBTP housing and PA vane
• Protected against polarity reversal and overload
• Electric connection with two 22 AWG rated wires

Note

A manufacturer part number suffixed 'U' denotes either IP54 or IP68 rating

Approvals

UL Approved

IP68 Rated Axial Fan for Harsh Environments

These high performance fans are also protected from dust ingress and a high degree of moisture ingress. They are ideal for operation in harsh environments and suitable for industrial grade applications.

630 Series Technical Data
