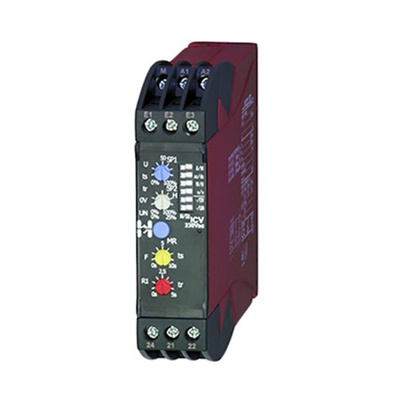

ICV 400Vac, Hiquel Voltage Monitoring Relay With DPDT Contacts, 1 Phase, Overvoltage, Undervoltage, Реле контроля

9144657
Номер производителя: ICV 400VacПроизводитель: Hiquel
Цена за шт.
43854.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ICV Series Voltage Control Monitor

Hiquel ICV series monitors a single phase voltage signal. It is suitable for use with alternate and direct voltage signals. Three different voltage ranges available to improve the measuring precision. Thresholds for alarm functions, alarm reaction time and start delay time can be easily adjusted using the rotary switches on the front plate.

AC or DC voltage monitor
3 different voltage ranges
2 selectable measuring functions
Automatic or manual reset selectable
Alarm memory function
Output relay contact invertable
DPCO alarm relay
LED indicator
22.5 mm DIN rail mount housing

Hiquel in-Case Series Monitoring Relays

HIQUEL in-Case series, an integrated range of industrial monitoring and timing relays in a compact 22.5 mm DIN Rail case. Designed with emphasis on flexibility and incorporating a new micro-controller, just four monitoring relays offer a complete range. Featuring single phase current and voltage, 3 phase voltage, and thermistor monitoring. With all popular functions, combinations and options selected by switches.

Техническая спецификация
pdfDatasheet
Высота:
110мм
Диапазон рабочих температур:
-20 → +60°C
Длина:
22.5мм
Количество полюсов:
2
Конфигурация контактов:
DPDT
Программы мониторинга:
Напряжение
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Размеры:
22.5 x 93.5 x 110mm
Тип клеммы:
Винт
Тип монтажа:
DIN Rail
Чувствительность по напряжению:
Повышенное напряжение, Пониженное напряжение
Ширина:
93.5мм
Электрическая фаза:
1
