Martindale PD240 Proving Unit 2mA 240V dc

9144714
Номер производителя: PD240Производитель: Martindale
Цена за шт.
24570.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

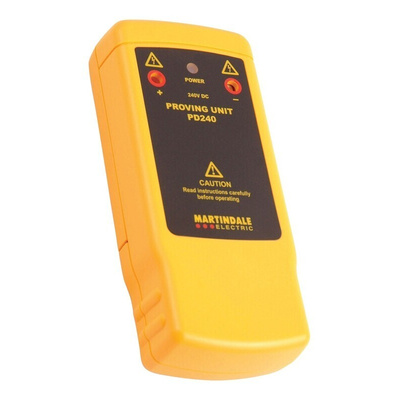

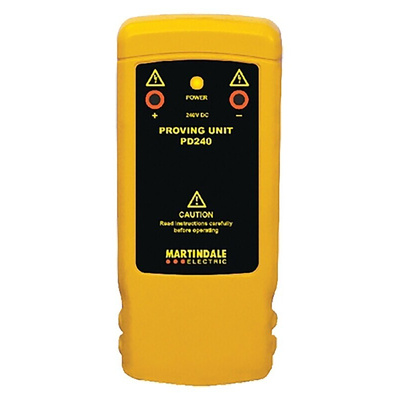

Martindale PD240 Pocket Sized Proving Unit

The Martindale PD240 is a pocket-sized, battery-powered 240 V DC proving unit which is limited to a current of 2 mA. This makes it suitable for use with digital multimeters and many two pole voltage testers that have an input impedance greater than 120 kΩ. The PD240 is actuated by microswitch when the probes of a voltage indicator or test leads of a multimeter are inserted into the probe apertures on its front face. An LED adjacent to the probe apertures indicates when the unit is powered. The body of the proving device is made out of flame retardant ABS. It is flush mounted so is stable when used on flat surfaces.

Features and Benefits

Output voltage 240 V + 4% DC at 2 mA, 3.5 mA maximum
LED power indicator threshold180 V + 4% DC output
Minimum operating battery level 5 V DC
Operating temperature range -10 to 40 °C at maximum 70% RH
Dimensions 144 x 63 x 31 mm
Weight 180 g approximately (including battery)

Note

Not for use with Martindale VI13700G voltage indicators or Drummond test lamps

Standards

BS-EN61010-1 2001

Supplied with

Battery, belt clip, instruction manual

Martindale Lock-Off Kits, Voltage Indicators and Proving Units

Техническая спецификация
pdfInstruction Manual
pdfDatasheet
Вес:
180гр
Высота:
31мм
Длина:
144мм
Источник питания:
Батарея
Модель р:
PD240
Напряжение выходное:
240В пост. тока
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
-10°C
Размеры:
144 x 63 x 31мм
Тестовый ток:
2мА
Тип батареи:
Ширина:
63мм
