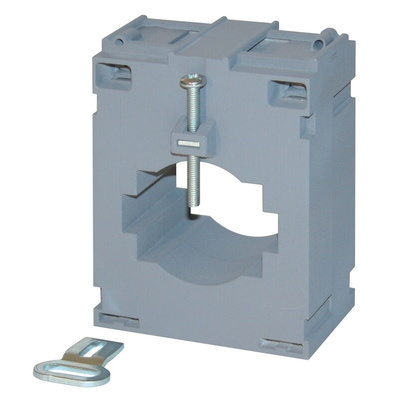

175-5-E6, HOBUT Series 17 Series Current Transformer, 40mm Bore, Трансформатор тока

Compact Busbar/Base Mounting Current Transformers- Series 17

A range of compact, moulded case current transformers suitable for primary currents from 250A to 1250A with built-in sealable terminal covers. The current transformers are used to transform various primary currents into 5A or 1A standard secondary using up to 50 x 10 mm or 40 x 30 mm busbars. Alternatively you can use cables up to 40 mm diameter.

• Built-in sealable terminal covers
• Mounting feet supplied
• Narrow width- 70 mm
• Wide range of primary current
• Rated system voltage 0.72/3kV
• Continuous current 1.2 x rated current
• Conforms to IEC185, BS 7626, BSEN 60044-1and IEC 60044-1
