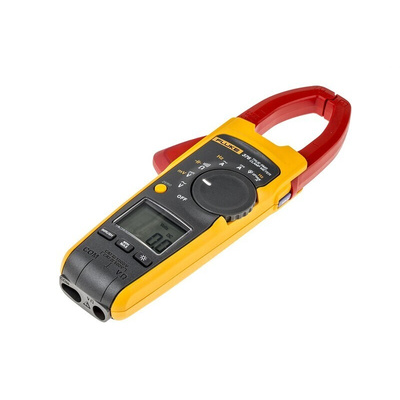

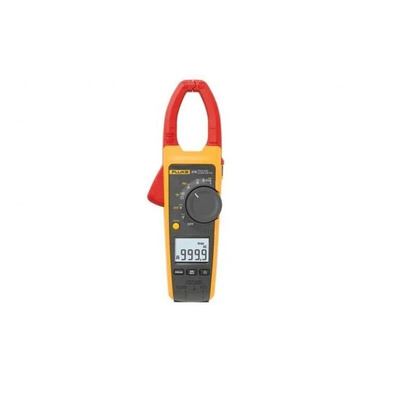

Fluke 376 AC/DC Clamp Meter, 999.9A dc, Max Current 999.9A ac CAT III 1000 V, CAT IV 600 V

Fluke True-RMS Clamp Meter

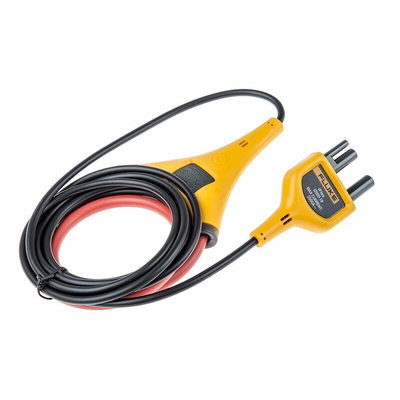

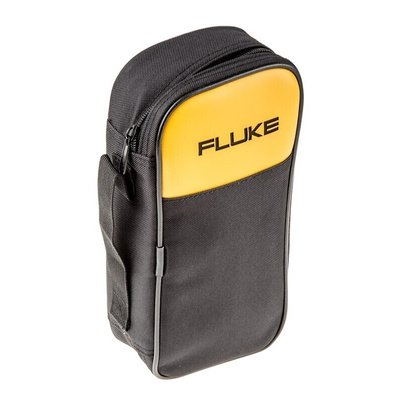

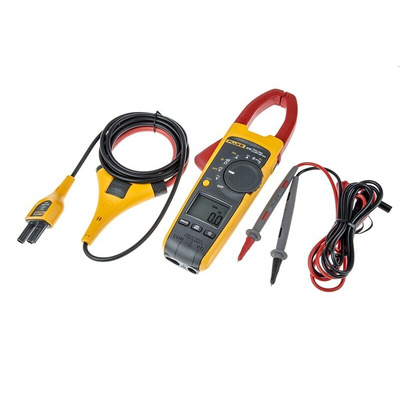

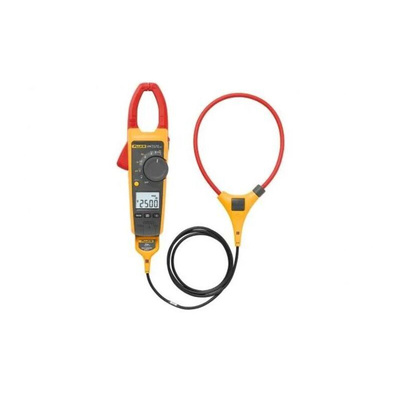

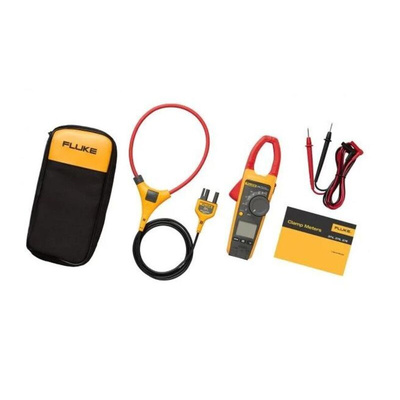

The Fluke True-RMS clamp meter measures current up to 1000A (AC/DC) with fix jaw and iFlex™ flexible current probe expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access. The Integrated low pass filter and state of the art signal processing allow for use in noisy electrical environments while providing stable readings. This meter contains an 18in iFlex current probe, TL75 test leads, soft carry case, 2xAA alkaline batteries, TPAK magnetic hanging strap, and instructions.

Features and Benefits

Voltage measurement is 1000V AC/DC
Frequency measurement up to 500Hz with body jaw and iFlex
Resistance measurement up to 60kohm with continuity detection
Minimum, maximum, average and inrush recording to capture variations automatically
500mVDC measurement range to interface with other accessories
Capacitance measurement is 1000μF
Capture intermittent faults while performing other tasks using the logging capabilities
Create and share reports from the field via email or converse in real-time with ShareLive video calls
Integrated VFD low pass filter for accurate motor drive measurements
Proprietary inrush measurement technology to filter out the noise and capture motor starting current exactly as the circuit protection sees it
Display HOLD
Operating temperature ranges between -10°C and 50°C

Applications

Petrochemical industry
Oil and gas
Food and beverages
Pharmaceuticals

Certifications

CE
cCSAus
TUV
CAT IV 600V, CAT III 1000V safety rating
