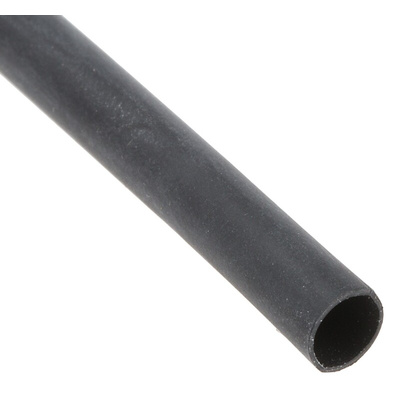

318-40400 TA42-4/1-PO-X-BK, HellermannTyton Adhesive Lined Heat Shrink Tubing, Black 4mm Sleeve Dia. x 1.2m Length 4:1 Ratio, TA42 Series

HellermannTyton Heat Shrink Tubing TA Series

The TA Series of heat shrink tubing has been specially designed for environmental sealing and electrical insulation of wire splices, terminations and components. This series has a 4:1 shrink ratio meaning it shrinks to a quarter of its original diameter. It also comes adhesive lined allowing easy securing of wiring and cables.

Features and Benefits

• Cross-linked Polyolefin (PO-X)
• Thin walled
• High expansion ratio
• Adhesive lined
• 4:1 shrink ratio
• High shrink ratio makes it easy to repair most damages without removing connectors
• High heat resistance
• Adhesive bonds to a variety of plastics, rubbers and metals

Why should I use HellermannTyton Heat Shrink Tubing TA Series?
The TA adhesive lined series is a user friendly solution for wiring and cables and can be utilised for a wide variety of applications where protection is needed from water, chemicals and heat.

What does a heat shrink ratio of 4:1 mean?
A ratio of 4:1 means when the tube is heated it shrinks to a quarter of its original diameter.

How can I shrink the tubing?
A heat gun or a heat shrink oven are ideal ways to shrink your tubing. Before heating always check to ensure you know the correct heating temperature of your tubing.

Remember to ensure all health and safety precautions have been taken prior to using a heating devise.

Standards

UL224, CSA, SAE-AMS-DTL-23053/4, Class 3, RoHS

HellermanTyton Heat Shrink Tubing, 1mm Shrunk Diameter, Polyolefin Material - TA42 Series - 318-40400 TA42-4/1-PO-X-BK

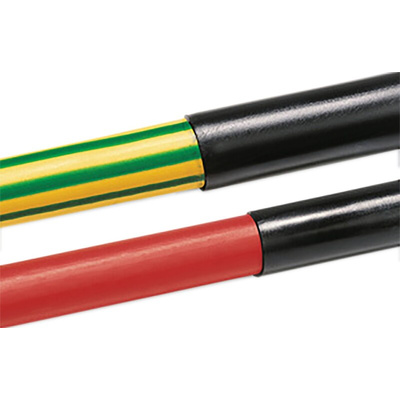

Insulate and protect your wiring with this heat shrink tubing from HellermanTyton. It's lined with adhesive to achieve a consistent hold that gives effective protection against moisture and the elements. A shrink ratio of 4:1 makes this an ideal option for irregular and bulky connections. Simply slide the tubing over the wire and shrink it in place using a heat gun. As it comes in a length of 1.2m, you can insulate long wire sections. For convenience, you can also easily cut it to the size you need.

Features & Benefits

• 20kV/mm dialectric strength for reliable insulation
• 4mm sleeve diameter ideal for smaller wires
• Discreet black colour to blend in with cabling

Applications

• Electrical engineering
• Transport infrastructure
• Factory floors

What's this heat shrink tubing made of?

It's made of polyolefin, so it's durable, lightweight and chemical-resistant.

Datasheet
