Simex SRP-457-1811-1-4-091 , LED Digital Panel Multi-Function Meter for Voltage, Многофункциональный измеритель

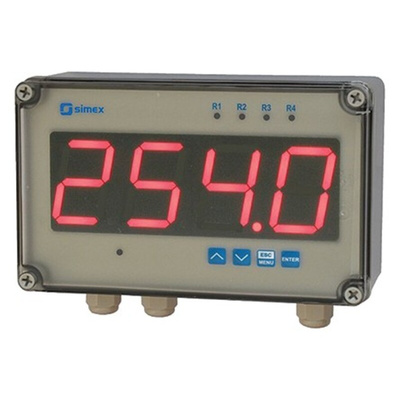

SRP-457 Process Meter

The SRP-457 digital process meter is equipped with one measurement input and a standard resistor protection circuit. The meter features a 4-button keyboard for basic programming settings, which is located under the front cover, for greater security. A remote control can also be used to change the settings without unsealing the casing of the meter.

• Large 4-digit (57 mm) LED display
• Display brightness adjustable in 8 steps
• Tight, wall mounting case
• 1 Relay output to control ON/OFF processes
• 0/4-20 mA, 0/1-5 V, 0/2-10 V inputs
• RS485/Modus RTU communication port
• Range of conversion characteristics- linear, square, square root and user defined
• Password protected
• Signal peak value detection
• 230 V ac power supply
• Infrared remote controller (914-8502) can be used with this meter
