SLN-94-1421-1-4-001, Simex Counter Counter, 3 Digit, 10kHz, 230 V ac, Счетчик

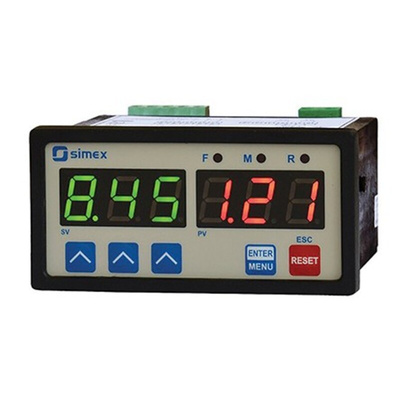

SLN-94 LED Counter

The SLN-94 is an LED counter designed for up-down counting of 3 Pulses in 3 decades and a single program register for programming batcher function. It features easy setting changes that are performed by using 3 buttons located under each decade of the SV threshold value display (green). The current value on the counter is shown by the PV display (red).
The SLN-94 counter is designed for use in hard environment conditions.

• 3-digits (13 mm) LED dual display
• Up-down and down-up pulse counter
• Settable activation threshold
• Batching function with 2 relay (or OC) outputs (rough and accurate batching)
• Panel mounting
• 4 Counter reset sources
• Choice of a new counting cycle start
• Automatic reset option
• Programmable divider
• Programmable decimal point position
• Built-in RS485 communication interface
• Available with AC and DC power supply versions
• IP65 (front panel, when using waterproof cover), IP40 (front panel, without waterproof cover) & IP20 (housing and connection clips) protection
