Simex SRP-946-1841-1-4-001 , LED Digital Panel Multi-Function Meter for Current, Voltage, 43mm x 90.5mm, Многофункциональный измеритель

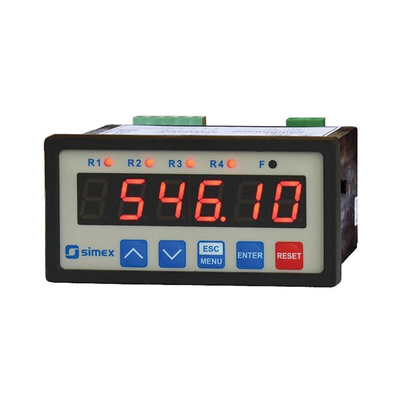

SRP-94/946 Process Meter

The SRP-94 and SRP-946 are process meters designed for measuring typical current or voltage signals. The readouts on these meters are presented on a large, well-readable display with standard range of 4 digits or 5/6 digits for more demanding applications. The outputs on these meters are designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.

• SRP-94 - 4-digit (20 mm) LED display
• SRP-946 - 6-digit (13 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• 4 Relay outputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
